- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BG95-M3
- Part Number BG95-M3
- Manufacturer Quectel
- Pin Count 102
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - BG95-M3-1
- Released Date Apr 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BG95-M3 Details
-
Manufacturer Part Number:
BG95-M3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
MODULE-102
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Quectel Wireless Solutions Co Ltd
-
Additional Feature:
SEATED HGT-NOM; Data Rate(kbps) :For LTE Cat M1-588(DL), Cat NB2-127(DL), 158.5(UL)
-
Data Rate:
1119 Mbps
-
JESD-30 Code:
R-XXMA-N102
-
Length:
23.6 mm
-
Number of Functions:
1
BG95-M3 Frequently Asked Questions (FAQs)
-
The maximum power consumption of the BG95-M3 module is around 2.5W, but it can vary depending on the operating mode, frequency band, and other factors.
-
To configure the BG95-M3 module for low power consumption, you can use the AT command set to adjust the power mode, disable unnecessary features, and optimize the transmission power. You can also use the module's built-in power saving features, such as Power Saving Mode (PSM) and Extended Discontinuous Reception (eDRX).
-
The maximum data transfer rate of the BG95-M3 module is up to 10Mbps for downlink and up to 5Mbps for uplink, depending on the network conditions and the specific frequency band used.
-
Yes, the BG95-M3 module supports Voice over LTE (VoLTE) and can be used for voice and video calls over LTE networks.
-
The firmware of the BG95-M3 module can be updated using the Quectel-provided firmware update tool and a USB connection. The update process typically involves downloading the latest firmware from the Quectel website, connecting the module to a PC, and using the update tool to upload the new firmware to the module.
Trust Checks
Expert Contribution
System Verified
Community Approved
BG95-M3 Overview

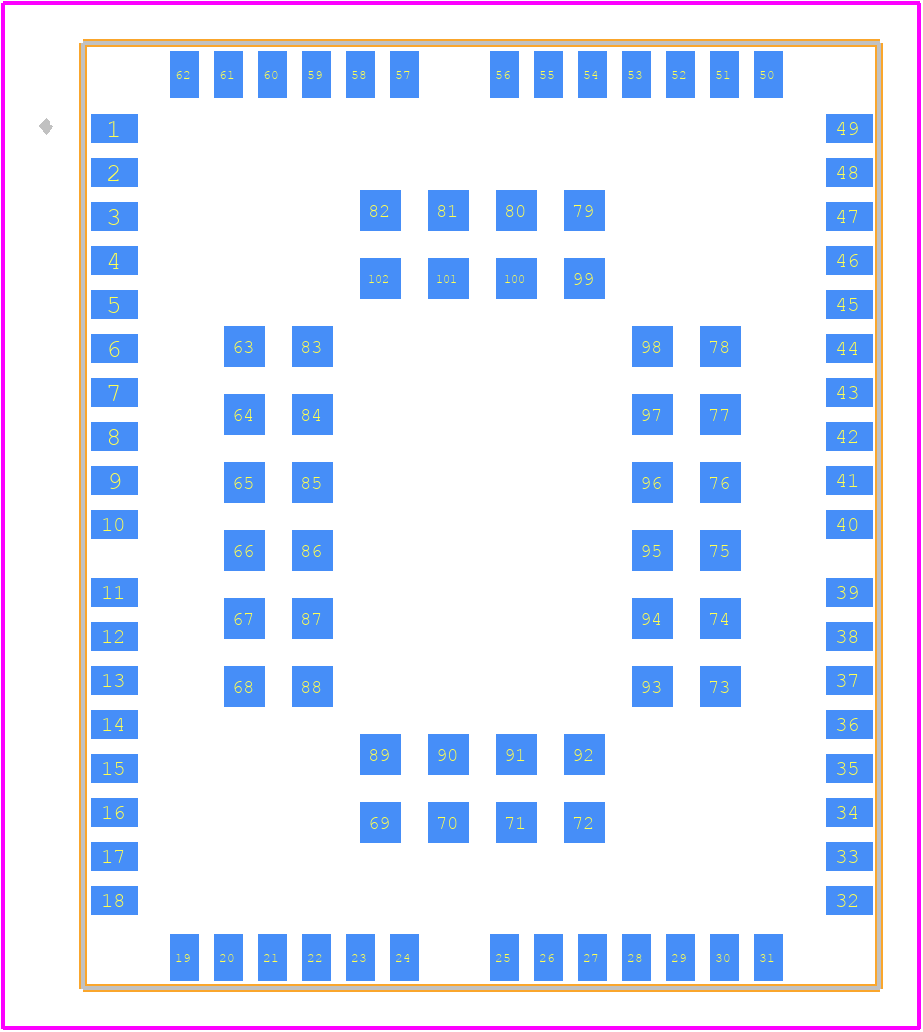

Use the download button to access the BG95-M3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BG95-,
or try a keyword search, such as Other Telecom ICs
