- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BGA3131J
- Part Number BGA3131J
- Manufacturer NXP
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HVQFN20: plastic thermal enhanced very thin quad flat package; no leads; 20 terminals; body 5 x 5 x 0.85
- Released Date Dec 2, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BGA3131J Details
-
Manufacturer Part Number:
BGA3131J
-
Brand Name:
NXP Semiconductor
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Part Package Code:
QFN
-
Pin Count:
20
-
Manufacturer Package Code:
SOT662-1
-
Country Of Origin:
Mainland China, Taiwan
-
HTS Code:
8542.33.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
1
BGA3131J Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Ensure that the RF traces are short and direct, and that the decoupling capacitors are placed close to the device.
-
Use a Smith chart or an impedance tuner to optimize the impedance matching. The device has a nominal impedance of 50 ohms, but the optimal impedance may vary depending on the specific application and PCB layout.
-
The maximum power handling capability of the BGA3131J is 31 dBm. However, the actual power handling capability may be limited by the specific application and the PCB layout.
-
Ensure that the device is properly soldered and that the PCB is designed to withstand the operating temperatures and humidity. Apply a conformal coating to protect the device from moisture and contaminants.
-
The BGA3131J has a thermal resistance of 25°C/W. Ensure that the device is mounted on a heat sink or a thermal pad to dissipate heat effectively. The maximum junction temperature is 150°C.
Trust Checks
Community Provided
System Verified
Community Approved
BGA3131J Overview

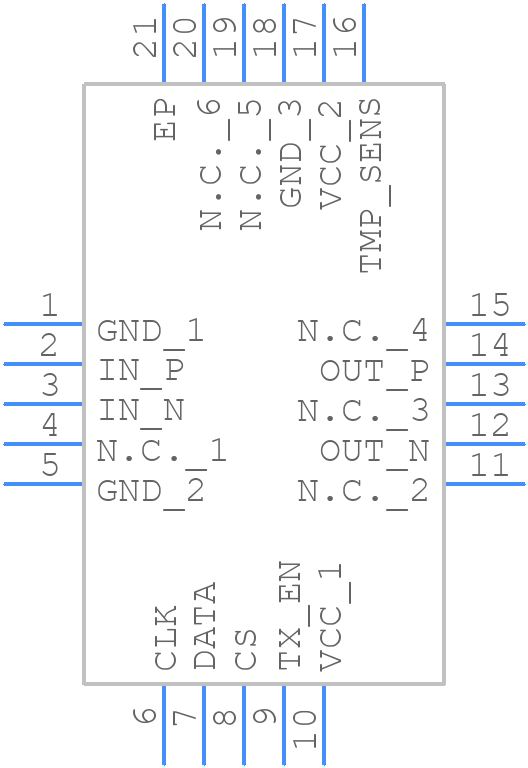

Use the download button to access the BGA3131J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BGA31,
or try a keyword search, such as Other Consumer ICs
