Infineon provides a recommended PCB layout and land pattern in their application note AN2013-01, which can be found on their website. It's essential to follow these guidelines to ensure reliable assembly and operation.
The device has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
Infineon recommends using X7R or X5R ceramic capacitors with a value of 100nF to 1uF, and a voltage rating of 6.3V or higher. The capacitors should be placed as close as possible to the device's power pins.
Follow the recommended soldering profile and temperature guidelines provided by Infineon. Ensure the PCB is clean and free of contaminants, and use a solder paste with a melting point compatible with the device's temperature rating.
Infineon recommends using a PCB material with a high thermal conductivity, such as FR4 or IMS. The PCB thickness should be at least 1.6mm to ensure reliable operation and thermal management.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BGAU1A10E6327XTSA1 Overview

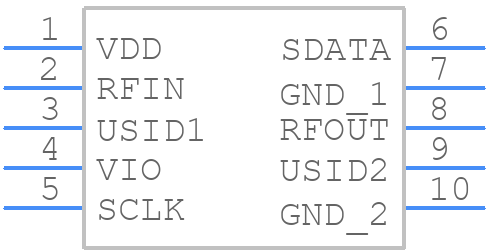

Use the download button to access the BGAU1A10E6327XTSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BGAU1,
or try a keyword search, such as Other Telecom ICs
