BGS16MN14E6327XTSA1 - Infineon

Description: INFINEON - BGS16MN14E6327XTSA1 - RF SWITCH, SP6T, 100MHZ-2.7GHZ, TSNP-14

Download BGS16MN14E6327XTSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

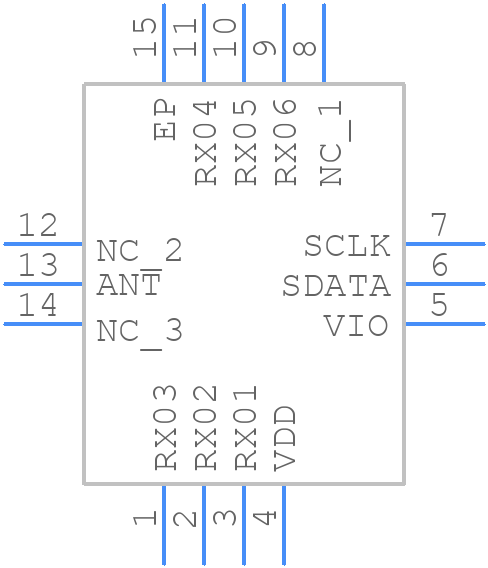

BGS16MN14E6327XTSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BGS16MN14E6327XTSA1 - Infineon PCB footprint - Other - Other - BGS18MN14E6327XTSA1-1
click to zoom
3D Models
BGS16MN14E6327XTSA1 - Infineon - 3D model - Other - BGS18MN14E6327XTSA1-1
click to zoom

BGS16MN14E6327XTSA1 Details

  • Manufacturer Part Number:

    BGS16MN14E6327XTSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    2 X 2 MM, GREEN, PLASTIC, TSNP-14

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.77 mm

  • Supply Voltage-Nom:

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm
