The recommended PCB layout for optimal performance can be found in the application note 'PCB Layout Recommendations for BGS18GA14E6327XTSA1' available on Infineon's website. It provides guidelines for component placement, routing, and grounding to minimize electromagnetic interference and ensure reliable operation.
The BGS18GA14E6327XTSA1 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-power or high-temperature environments.
The recommended soldering conditions for the BGS18GA14E6327XTSA1 are a peak temperature of 260°C, with a soldering time of 10-30 seconds. It's essential to follow the soldering profile recommended by Infineon to prevent damage to the device.
To troubleshoot issues with the BGS18GA14E6327XTSA1, start by checking the power supply voltage, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug signal issues. Consult Infineon's application notes and technical support resources for guidance on specific issues.
Yes, the BGS18GA14E6327XTSA1 is a sensitive device and requires proper ESD precautions during handling and assembly. Use ESD-safe materials, wrist straps, and mats to prevent static damage. Ground yourself before handling the device, and avoid touching the pins or internal components.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BGS18GA14E6327XTSA1 Overview

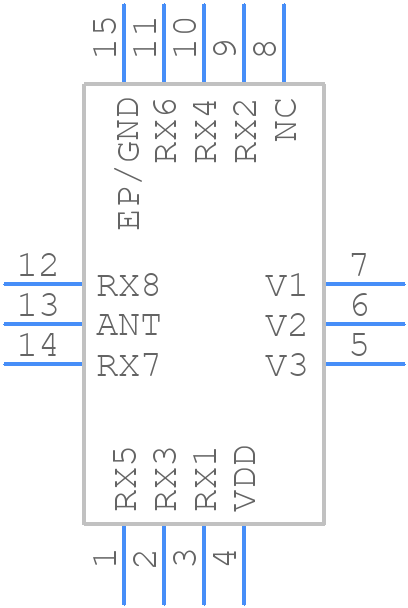

Use the download button to access the BGS18GA14E6327XTSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BGS18,
or try a keyword search, such as Other Telecom ICs
