BH1415F footprint, schematic symbol and 3D model by ROHM Semiconductor

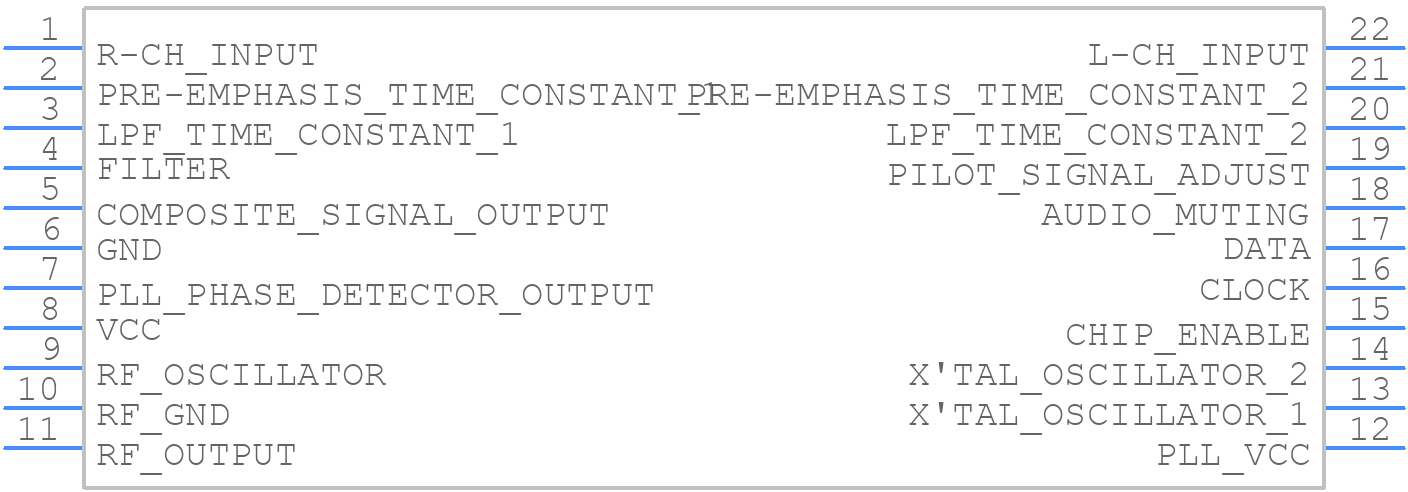

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BH1415F
Part Number BH1415F
Manufacturer ROHM Semiconductor
Pin Count 22
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOP22
Released Date Sep 9, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BH1415F Details

Manufacturer Part Number:
BH1415F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
SOP-22
Pin Count:
22
HTS Code:
8542.39.00.60
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PDSO-G22
JESD-609 Code:
e2
Length:
13.6 mm
Number of Functions:
1
Number of Terminals:
22
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP22,.3
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Seated Height-Max:
1.9 mm
Supply Current-Max:
28 mA
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
4 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN COPPER
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
5.4 mm

BH1415F Frequently Asked Questions (FAQs)

A good PCB layout for the BH1415F involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. ROHM provides a recommended PCB layout in their application notes.
To ensure stability, make sure to follow the recommended component values and PCB layout, and avoid using long input and output traces. Additionally, adding a small capacitor (e.g., 10nF) between the output pin and ground can help prevent oscillation.
The maximum power dissipation of the BH1415F is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 1.5W at an ambient temperature of 25°C. However, this value can be derated based on the actual operating conditions.
Yes, the BH1415F can be used in switching power supply applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent high-frequency noise from affecting its operation. Additionally, the device's power dissipation and thermal management should be carefully considered.
To troubleshoot issues with the BH1415F, start by verifying the PCB layout and component values against the recommended design. Check for any signs of overheating, and ensure that the device is properly decoupled and bypassed. Use an oscilloscope to measure the output voltage and current, and look for any signs of oscillation or instability.

Trust Checks

Community Provided

System Verified

Community Approved

BH1415F Overview

Use the download button to access the BH1415F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BH141, or try a keyword search, such as Other Consumer ICs
