Part Image

BLUENRG-232 - STMicroelectronics

Description: Bluetooth Low Energy Wireless SoC QFN32

Download BLUENRG-232 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

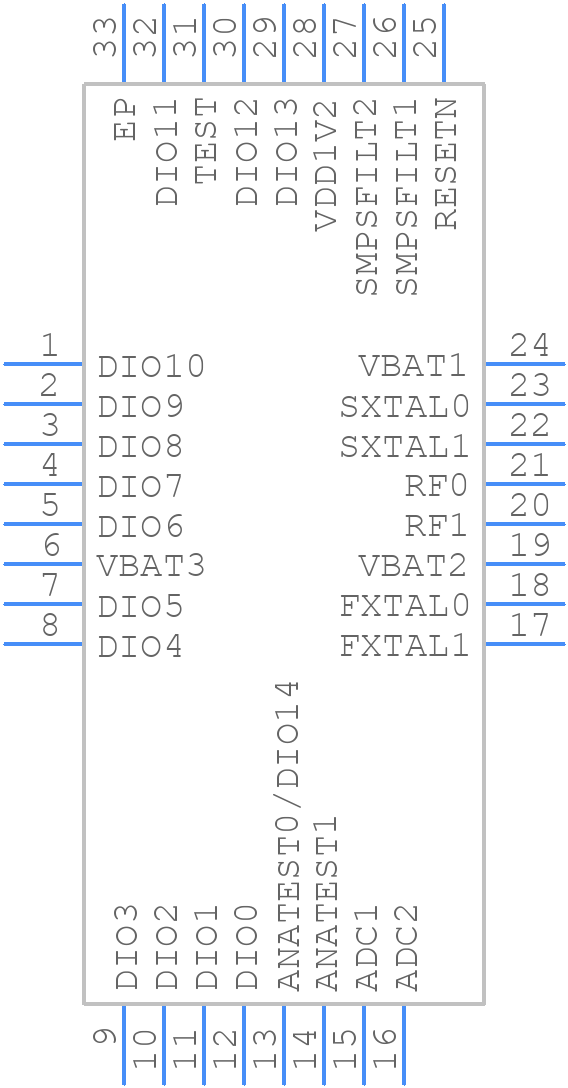

BLUENRG-232 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BLUENRG-232 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 (5 x 5 x 1 pitch 0.5 mm)_1
click to zoom
3D Models
BLUENRG-232 - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN32 (5 x 5 x 1 pitch 0.5 mm)_1
click to zoom

BLUENRG-232 Details

  • Manufacturer Part Number:

    BLUENRG-232

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    5A992.C

  • Date Of Intro:

    2018-02-20

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

BLUENRG-232 Frequently Asked Questions (FAQs)

  • The maximum transmission power of BLUENRG-232 is +8 dBm.
  • To configure the BLUENRG-232 for low power consumption, you can use the sleep mode, which reduces the current consumption to around 50 nA. You can also use the shutdown mode, which reduces the current consumption to around 10 nA.
  • The range of the BLUENRG-232 depends on the environment and the antenna used. Typically, it can achieve a range of up to 100 meters in open space, but this can be affected by obstacles, interference, and other factors.
  • The BLUENRG-232 supports AES-128 encryption, which can be implemented using the ARM mbed TLS library or other encryption libraries. You will need to generate and exchange encryption keys, and then use the AES-128 algorithm to encrypt and decrypt data.
  • Yes, the BLUENRG-232 can be used with other microcontrollers, as long as they have a UART or SPI interface. You will need to use the correct communication protocol and configure the BLUENRG-232 accordingly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BLUENRG-232 Overview

Use the download button to access the BLUENRG-232 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BLUEN, or try a keyword search, such as Other Telecom ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
