BM6208FS-E2 footprint, schematic symbol and 3D model by ROHM Semiconductor

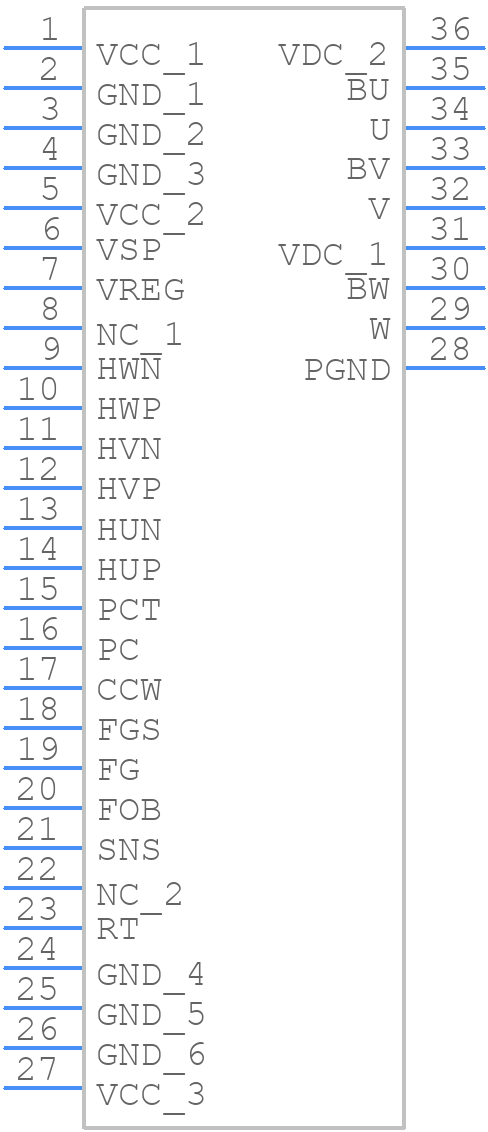

Symbol

click to zoom

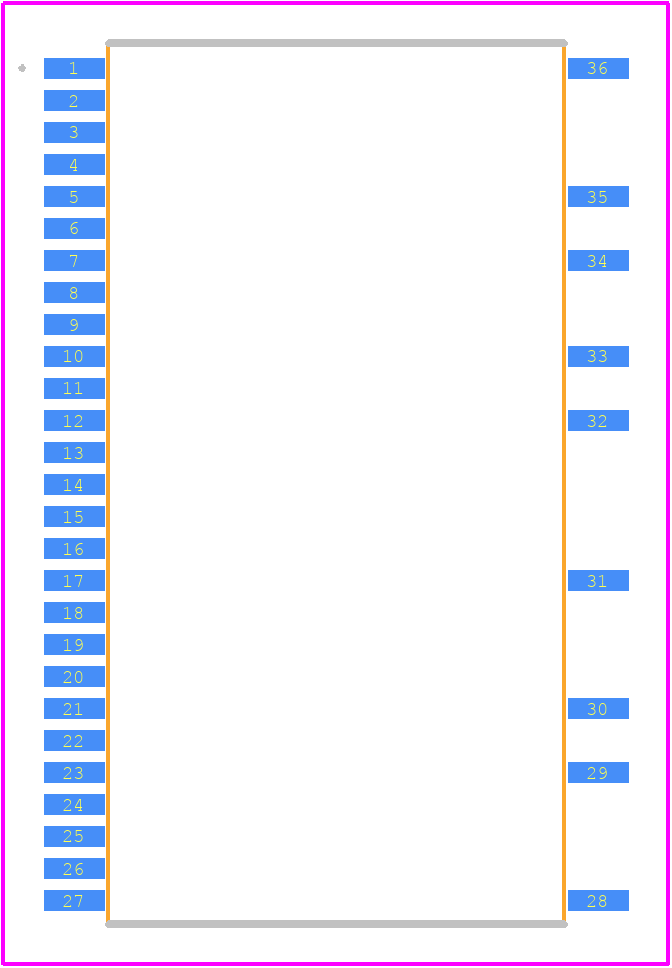

PCB Footprints

BM6208FS-E2 - ROHM Semiconductor PCB footprint - Other - Other - SSOP-A54_36

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BM6208FS-E2
Part Number BM6208FS-E2
Manufacturer ROHM Semiconductor
Pin Count 36
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SSOP-A54_36
Released Date Feb 5, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BM6208FS-E2 Details

Manufacturer Part Number:
BM6208FS-E2
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SSOP-36
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Additional Feature:
IT ALSO REQUIRES 310 V
Analog IC - Other Type:
3-PHASE BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code:
R-PDSO-G36
Length:
22 mm
Number of Functions:
1
Number of Terminals:
36
Output Current-Max:
2.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SOP36,.5.32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Seated Height-Max:
2.2 mm
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
13.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Width:
11.4 mm

BM6208FS-E2 Frequently Asked Questions (FAQs)

A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
To ensure stable output voltage regulation, it is recommended to use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Additionally, the input capacitor should be placed close to the VIN pin to reduce noise and ripple.
The maximum input voltage that can be applied to the BM6208FS-E2 is 18V. Exceeding this voltage may damage the device.
The BM6208FS-E2 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it is recommended to add external protection components such as fuses or PTC thermistors to prevent damage from excessive current or heat.
The BM6208FS-E2 is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.

Trust Checks

Expert Contribution

System Verified

Community Approved

BM6208FS-E2 Overview

Use the download button to access the BM6208FS-E2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BM620, or try a keyword search, such as Motion Control Electronics
