BNC-LR-PC(40) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

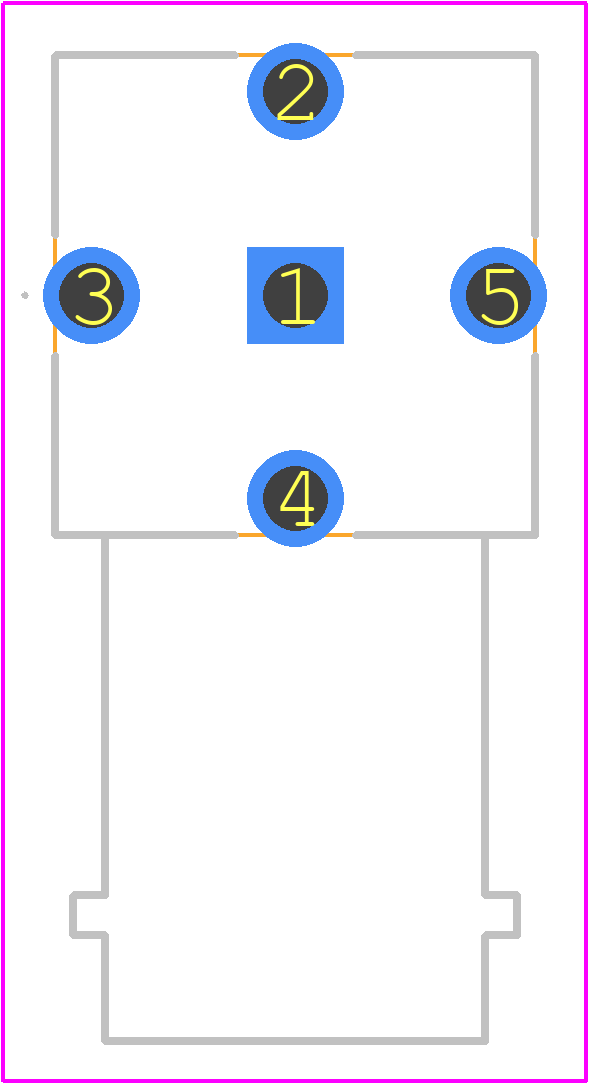

PCB Footprints

BNC-LR-PC(40) - Hirose PCB footprint - Other - Other - BNC-LR-PC(40)-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BNC-LR-PC(40)
Part Number BNC-LR-PC(40)
Manufacturer Hirose
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - BNC-LR-PC(40)-4
Released Date Apr 15, 2026
Last Modified Date May 16, 2026 1:36 PM UTC
Pinout / Pin List Click Here (Member Only)

BNC-LR-PC(40) Details

Manufacturer Part Number:
BNC-LR-PC(40)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
8
Body Breadth:
0.669 inch
Body Depth:
0.97 inch
Body Length:
0.472 inch
Body/Shell Style:
RECEPTACLE
Characteristic Impedance:
50 Ω
Connector Type:
RF BNC CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Resistance:
3 mΩ
Contact Style:
COAX
Coupling Type:
BAYONET
Dielectric Withstanding Voltage:
2100VAC V
Durability:
5000 Cycles
Insulation Resistance:
5000000000 Ω
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Frequency-Max:
4 GHz
Shell Material:
BRASS
Terminal Length:
0.197 inch
Termination Type:
SOLDER
Total Number of Contacts:
1
VSWR:
1.2

BNC-LR-PC(40) Frequently Asked Questions (FAQs)

The recommended torque for tightening the BNC-LR-PC(40) connector is 0.5 N·m to 1.0 N·m (5 in-lbs to 9 in-lbs).
Yes, the BNC-LR-PC(40) connector is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and other applications where vibration is a concern.
Yes, the BNC-LR-PC(40) connector is designed to operate in a wide range of temperatures (-40°C to 100°C) and humidity levels, making it suitable for use in harsh environments.
The BNC-LR-PC(40) connector has a typical mating cycle life of 500 to 1000 cycles, depending on the application and environmental conditions.
Yes, the BNC-LR-PC(40) connector is designed to be compatible with other BNC connectors from different manufacturers, ensuring interoperability and flexibility in system design.

Trust Checks

Community Provided

System Verified

Community Approved

BNC-LR-PC(40) Overview

Use the download button to access the BNC-LR-PC(40) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BNC-L, or try a keyword search, such as RF BNC Connectors
