The recommended layout and placement for the BQ2003S-N involves placing the device close to the battery, using a single-layer PCB, and keeping the traces short and wide to minimize resistance and inductance. It's also important to separate the high-current paths from the low-current paths and to use a solid ground plane to reduce noise and EMI.
To ensure accurate fuel gauging with the BQ2003S-N, it's essential to calibrate the device correctly, use a high-accuracy voltage reference, and compensate for temperature effects. Additionally, the device should be configured to match the specific battery chemistry and characteristics, and the fuel gauging algorithm should be tuned to optimize accuracy.
The BQ2003S-N's fuel gauging algorithm is based on a Coulomb counting method, which can be affected by factors such as battery aging, self-discharge, and temperature variations. The algorithm may not accurately track the battery's state of charge under these conditions, and additional compensation or calibration may be required to achieve accurate fuel gauging.
The BQ2003S-N can be interfaced with a microcontroller or other digital systems using a serial communication protocol such as I2C or SPI. The device provides a range of digital outputs, including a fuel gauge output, a charge/discharge current output, and a battery voltage output, which can be connected to the microcontroller or other digital systems for further processing and analysis.
The BQ2003S-N is a high-power device that can generate significant heat during operation. To ensure reliable operation, it's essential to provide adequate thermal management, such as a heat sink or thermal pad, and to follow proper PCB layout and design guidelines to minimize thermal resistance and maximize heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2003S-N Overview

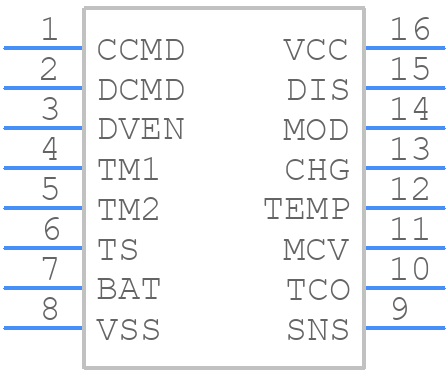

Use the download button to access the BQ2003S-N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ200,
or try a keyword search, such as Power Management Circuits
