Texas Instruments recommends a compact layout with the BQ2005S placed close to the battery, and the sense resistors (Rs) placed close to the device. The layout should minimize parasitic inductance and resistance. A 4-layer PCB with a solid ground plane is recommended.
To ensure accurate current measurement, use a low-value sense resistor (Rs) with a high accuracy tolerance (e.g., 1% or better). Place the sense resistor close to the BQ2005S and ensure the PCB layout minimizes voltage drops and noise. Also, calibrate the device according to the datasheet instructions.
The VREF pin is an internal voltage reference output that can be used as a reference voltage for other components in the system. It is not necessary for the BQ2005S's operation, but it can be useful for other purposes, such as powering a microcontroller's analog-to-digital converter (ADC).
Yes, the BQ2005S is designed to work with lithium-ion batteries. However, it's essential to follow the recommended charging and discharging profiles for lithium-ion batteries to ensure safe and reliable operation.
The BQ2005S has an internal POR and BOD circuitry that resets the device during power-up or when the supply voltage drops below a certain threshold. To handle these features, ensure that the power supply is stable and within the recommended operating range. Also, add external circuitry, such as a voltage supervisor, to handle power-on reset and brown-out detection if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2005S Overview

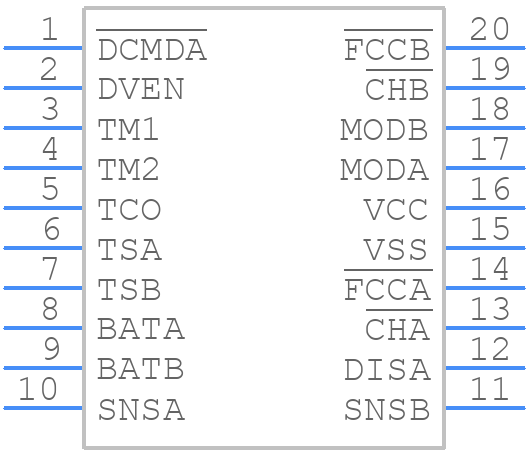

Use the download button to access the BQ2005S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ200,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
