BQ2010SN-D107 - Texas Instruments

Description: Texas Instruments BQ2010SN-D107, Battery Fuel Gauge IC NiCD, NiMH, 4.25 V, 16-Pin, SOIC

Download BQ2010SN-D107 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

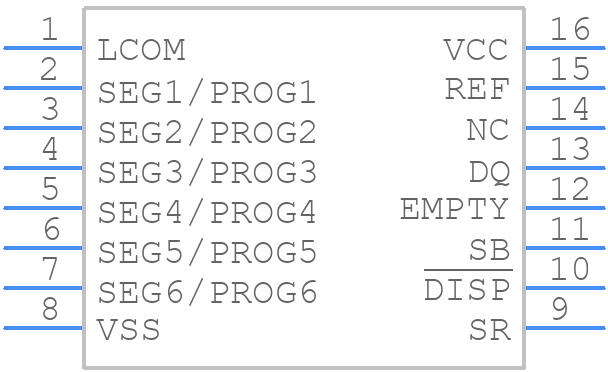

BQ2010SN-D107 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2010SN-D107 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
BQ2010SN-D107 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

BQ2010SN-D107 Details

  • Manufacturer Part Number:

    BQ2010SN-D107

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.25 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

BQ2010SN-D107 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ2010SN-D107 involves keeping the battery connections short and wide, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • Calibration of the BQ2010SN-D107 involves adjusting the device's internal registers to match the specific battery chemistry and capacity. This can be done using the device's calibration mode, which involves applying a known voltage and current to the device and adjusting the registers accordingly.
  • The BQ2010SN-D107 has an operating temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and accuracy.
  • Yes, the BQ2010SN-D107 can be used in a multi-cell battery configuration. However, it's recommended to use a separate device for each cell or group of cells to ensure accurate monitoring and control.
  • The BQ2010SN-D107 can be interfaced with a microcontroller or other digital system using a serial communication protocol such as I2C or SPI. The device provides a digital output that can be connected to the microcontroller's input pins.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

BQ2010SN-D107 Overview

Use the download button to access the BQ2010SN-D107 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ201, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
