Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the battery connections short and wide, and using a solid ground plane to minimize noise and EMI.
The BQ2013HSN-A514 has a built-in calibration routine that can be initiated by applying a specific voltage sequence to the device. Refer to the datasheet for the calibration procedure, and ensure that the battery is fully charged and discharged during the calibration process.
The accuracy of the fuel gauge depends on various factors, including the battery type, age, and health. According to the datasheet, the BQ2013HSN-A514 has an accuracy of ±5% over the entire operating range. However, this can be improved by calibrating the device and using a high-quality battery.
The BQ2013HSN-A514 is optimized for lithium-ion batteries, but it can be used with other battery chemistries with some modifications. However, this may require additional calibration and characterization of the battery. Consult the datasheet and application notes for more information.
The BQ2013HSN-A514 communicates with a microcontroller through an I2C interface. Ensure that the microcontroller is configured to communicate at the correct I2C address and frequency, and that the necessary pull-up resistors are used on the SCL and SDA lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2013HSN-A514 Overview

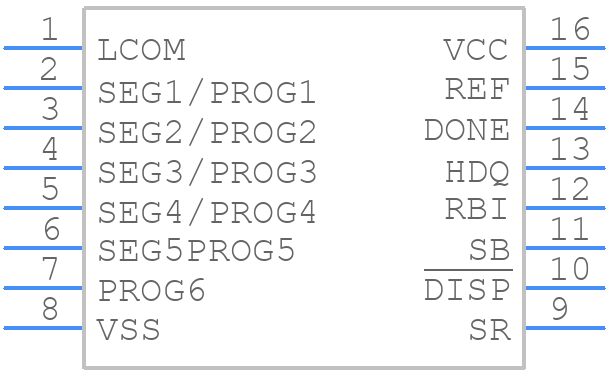

Use the download button to access the BQ2013HSN-A514 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ201,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
