BQ2013HSN-A514G4 - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ2013HSN-A514G4 - NICD/NIMH/LEAD-ACID GAS GAUGE, 2013

Download BQ2013HSN-A514G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

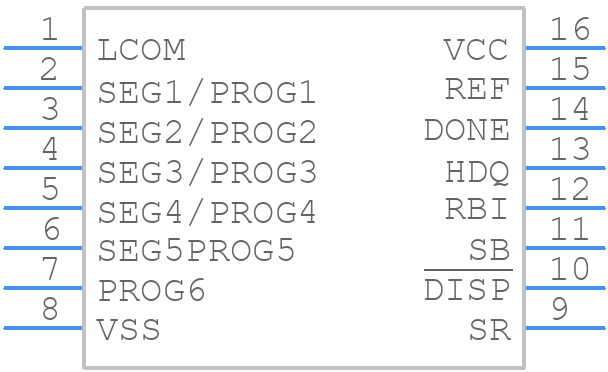

Symbol
BQ2013HSN-A514G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2013HSN-A514G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
BQ2013HSN-A514G4 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

BQ2013HSN-A514G4 Details

  • Manufacturer Part Number:

    BQ2013HSN-A514G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.25 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

BQ2013HSN-A514G4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the sense lines short and away from noise sources, using a solid ground plane, and placing the device close to the battery.
  • The BQ2013HSN-A514G4 has a typical accuracy of ±5% over the entire operating range. Factors that affect accuracy include temperature, battery age, and charge/discharge cycles. Calibration and compensation techniques can improve accuracy.
  • The BQ2013HSN-A514G4 can handle up to 500 charge/discharge cycles, but this may vary depending on the specific battery chemistry, operating conditions, and charging/discharging profiles.
  • While the BQ2013HSN-A514G4 is optimized for Lead-Acid batteries, it can be used with other chemistries like Li-ion or NiMH with some modifications and calibration. However, this may require additional circuitry and software adjustments.
  • The BQ2013HSN-A514G4 has a built-in compensation mechanism to account for battery self-discharge and leakage. However, it's essential to follow proper battery maintenance and storage procedures to minimize these effects.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ2013HSN-A514G4 Overview

Use the download button to access the BQ2013HSN-A514G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ201, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
