Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the sense lines short and away from noise sources, using a solid ground plane, and minimizing the distance between the battery and the IC.
Calibration involves setting the Learn Mode, charging the battery to 100%, and then discharging it to 0%. The IC will learn the battery's characteristics and adjust its calculations accordingly. Refer to the datasheet and application notes for detailed calibration procedures.
The BQ2013HSN-A514TR has an SOC accuracy of ±5% over the entire operating range, making it suitable for most battery-powered applications. However, this accuracy can be affected by factors like battery age, temperature, and charging/discharging patterns.
Yes, the BQ2013HSN-A514TR supports various battery chemistries, including Li-ion, NiMH, and Lead-Acid. However, you may need to adjust the configuration and calibration settings depending on the specific battery type and characteristics.
The BQ2013HSN-A514TR does not have built-in balancing capabilities. You'll need to use an external balancing circuit or a dedicated balancing IC to ensure proper balancing of the battery pack.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2013HSN-A514TR Overview

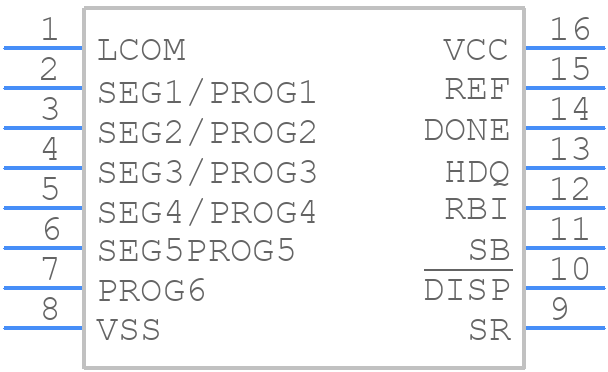

Use the download button to access the BQ2013HSN-A514TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ201,
or try a keyword search, such as Power Management Circuits
