BQ2018SN-E1TR - Texas Instruments

Description: IC BATTERY PWR MONITOR 8-SOIC

Download BQ2018SN-E1TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

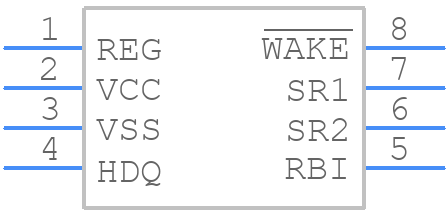

BQ2018SN-E1TR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2018SN-E1TR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
BQ2018SN-E1TR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

BQ2018SN-E1TR Details

  • Manufacturer Part Number:

    BQ2018SN-E1TR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.78 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    4.25 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.935 mm

BQ2018SN-E1TR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device near the battery to minimize noise and parasitic inductance. A dedicated ground pin should be connected to the ground plane.
  • Calibration involves setting the device's internal registers to match the specific battery characteristics. This can be done using the TI-provided software tools, such as the Fuel Gauge Calibration Tool, and following the recommended calibration procedure outlined in the application notes.
  • Temperature affects the device's accuracy, especially during charging and discharging. It's essential to consider temperature compensation using the device's internal temperature sensor or an external temperature sensor to ensure accurate fuel gauging.
  • Yes, the BQ2018SN-E1TR supports multiple battery chemistries, including Li-ion, NiMH, and Lead-Acid. However, the device's internal registers need to be configured accordingly, and the calibration process may vary depending on the specific battery chemistry used.
  • The BQ2018SN-E1TR has a sleep mode to conserve power. To wake up the device, a pulse on the WAKE pin is required. The wake-up mechanism should be carefully designed to avoid false wake-ups and ensure proper device operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ2018SN-E1TR Overview

Use the download button to access the BQ2018SN-E1TR schematic symbol, PCB footprint, and 3D model.
