Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Considerations' (SLUA364) for optimal performance.
Calibration of the BQ2018TS-E1 involves setting the device's internal registers to match the characteristics of the battery being used. Texas Instruments provides a calibration guide in the datasheet, as well as a software tool called 'Battery Fuel Gauge Calibration Tool' (available on the TI website) to simplify the process.
The accuracy of the BQ2018TS-E1's SOC measurement depends on various factors, including the quality of the calibration, the type of battery being used, and the operating conditions. However, according to the datasheet, the device is capable of achieving an SOC accuracy of ±5% or better over the entire operating range.
Yes, the BQ2018TS-E1 is designed to be compatible with various battery chemistries, including lithium-ion, nickel-metal hydride, and lead-acid. However, the device may require different calibration settings and compensation algorithms for each chemistry.
The BQ2018TS-E1 takes into account battery self-discharge when calculating the state-of-charge. The device uses a combination of coulomb counting and voltage-based measurements to estimate the battery's capacity and adjust for self-discharge over time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2018TS-E1 Overview

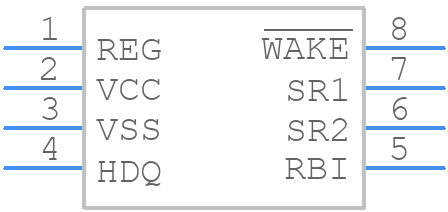

Use the download button to access the BQ2018TS-E1 schematic symbol, PCB footprint, and 3D model.
