Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure accurate battery monitoring, it's crucial to calibrate the device by setting the correct battery chemistry, capacity, and temperature compensation. Additionally, use a high-precision voltage reference and ensure the battery voltage sense lines are properly filtered and shielded.
Although the datasheet specifies a maximum VCC voltage of 6.5V, it's recommended to limit the voltage to 5.5V or less to ensure reliable operation and prevent damage to the device.
Yes, the BQ2031PN-A5 is suitable for use with lithium-ion batteries. However, it's essential to follow the recommended calibration and configuration settings for lithium-ion batteries, as specified in the datasheet.
The POR and BOR features are designed to ensure the device resets properly during power-up and brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended voltage range, and that the device is properly configured for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2031PN-A5 Overview

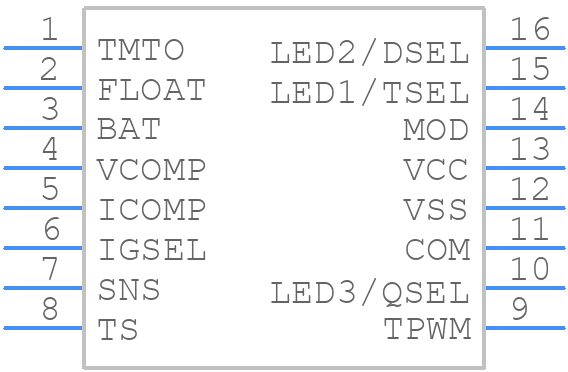

Use the download button to access the BQ2031PN-A5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ203,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
