Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Management Unit (BMU) Layout Guidelines' (SLUA443) for optimal performance and thermal management.
The BQ2040SN-D111TR fuel gauge can be calibrated using the Impedance Track algorithm, which requires a learning cycle to be performed. The learning cycle involves fully charging and discharging the battery while the fuel gauge learns the battery's characteristics. Refer to the application note 'Impedance Track Fuel Gauge Calibration' (SLUA444) for more information.
The BQ2040SN-D111TR can handle up to 500 charge/discharge cycles, but this may vary depending on the battery type, charging method, and environmental conditions. It's recommended to consult the battery manufacturer's specifications and follow proper charging and maintenance practices to ensure optimal battery life.
Yes, the BQ2040SN-D111TR can be used with multiple battery chemistries, including lithium-ion, lithium-polymer, and nickel-metal hydride. However, the fuel gauge calibration and settings may need to be adjusted depending on the specific battery chemistry and characteristics.
The BQ2040SN-D111TR has a built-in mechanism to compensate for battery self-discharge. The fuel gauge algorithm takes into account the battery's self-discharge rate and adjusts the state of charge (SOC) accordingly. However, it's still important to follow proper storage and maintenance procedures to minimize self-discharge and ensure accurate fuel gauge readings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2040SN-D111TR Overview

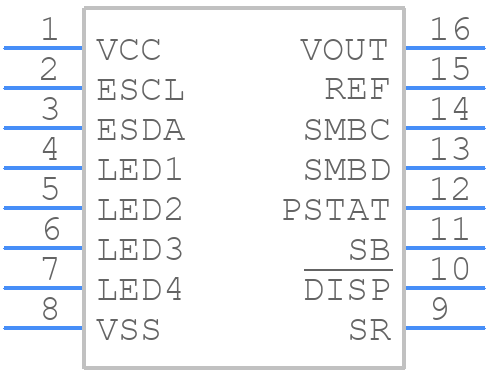

Use the download button to access the BQ2040SN-D111TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ204,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
