BQ2050HSN-A508G4 - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ2050HSN-A508G4 - Li-Ion Battery Fuel Gauge, Status Monitor, 3 V to 6.5 V supply, Serial interface, SOIC-16

Download BQ2050HSN-A508G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

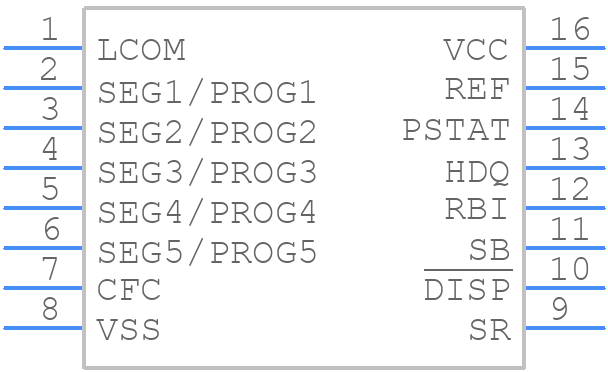

BQ2050HSN-A508G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2050HSN-A508G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
BQ2050HSN-A508G4 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

BQ2050HSN-A508G4 Details

  • Manufacturer Part Number:

    BQ2050HSN-A508G4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.97 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.78 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.25 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.935 mm

BQ2050HSN-A508G4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Management Unit (BMU) Layout Guidelines' (SLUA451) for optimal performance and thermal management.
  • The fuel gauge calibration process is described in the application note 'Impedance Track Fuel Gauge Calibration' (SLUA445). It involves measuring the battery's impedance and capacity, and then programming the calibration data into the device using the TI-provided software tools.
  • The maximum charging current that the BQ2050HSN-A508G4 can support is dependent on the specific application and battery chemistry. However, the device is designed to support charging currents up to 4A, and can be configured to limit the charging current to a lower value if required.
  • The BQ2050HSN-A508G4 is rated for operation up to 85°C, but it can be used in high-temperature applications with some limitations. The device's accuracy and reliability may be affected at high temperatures, and the battery's chemistry and design should be taken into account when operating in high-temperature environments.
  • The BQ2050HSN-A508G4 can be interfaced with a microcontroller using the I2C or HDQ interfaces. The device provides a range of registers that can be read and written to configure the device and retrieve battery information. TI provides software development kits (SDKs) and example code to help with the interface implementation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ2050HSN-A508G4 Overview

Use the download button to access the BQ2050HSN-A508G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ205, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
