Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The datasheet provides a list of recommended inductors, but you can also use the following guidelines: choose an inductor with a saturation current rating above the peak current of the regulator, and ensure the inductor's DC resistance is low to minimize power loss. You can also use online inductor selection tools or consult with the inductor manufacturer for guidance.
The datasheet specifies an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
The BQ2050SN-D119TR is a commercial-grade device, but Texas Instruments offers other versions of the device that are qualified for high-reliability or automotive applications, such as the BQ2050SN-D119Q or BQ2050SN-D119R. These devices have undergone additional testing and qualification to meet the requirements of these applications.
Common issues with the BQ2050SN-D119TR can be caused by poor PCB layout, incorrect component selection, or inadequate input and output capacitors. To troubleshoot, start by reviewing the datasheet and application notes, and then use oscilloscope measurements to identify the source of the issue. You can also consult with Texas Instruments' technical support or online forums for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2050SN-D119TR Overview

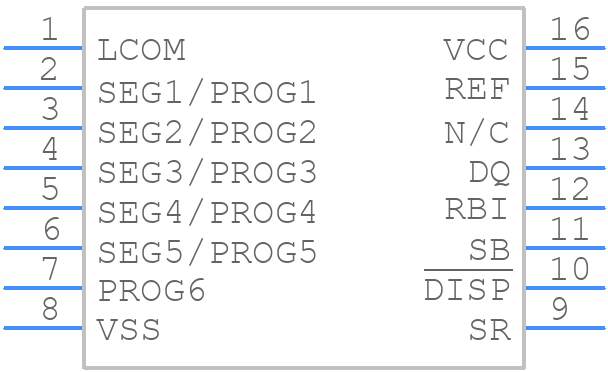

Use the download button to access the BQ2050SN-D119TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ205,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
