BQ2057CDGKR - Texas Instruments

Description: Low Dropout Linear 1-cell Li-Ion Charge Controller with AutoCompTM, 4.2V

Download BQ2057CDGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

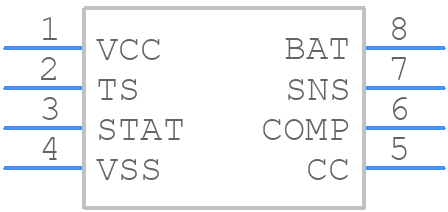

BQ2057CDGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2057CDGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK(s-pdso-g8)
click to zoom
3D Models
BQ2057CDGKR - Texas Instruments - 3D model - Small Outline Packages - DGK(s-pdso-g8)
click to zoom

BQ2057CDGKR Details

  • Manufacturer Part Number:

    BQ2057CDGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ2057CDGKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ2057CDGKR involves placing the device near the battery, using a solid ground plane, and keeping the voltage sense lines short and away from noise sources. TI provides a recommended layout in the datasheet and application notes.
  • Calibration involves setting the device's internal registers to match the specific battery chemistry and capacity. TI provides a calibration procedure in the datasheet and application notes, which involves measuring the battery's voltage and capacity and adjusting the device's registers accordingly.
  • The maximum voltage rating for the BQ2057CDGKR's input pins is 6V. Exceeding this voltage can damage the device. It's essential to ensure that the input voltage remains within the specified range to ensure reliable operation.
  • Yes, the BQ2057CDGKR is designed to work with various battery chemistries, including Li-ion, NiMH, and Lead-Acid. However, the device's internal registers may need to be reconfigured for each chemistry type. TI provides application notes and software tools to support multiple battery chemistries.
