The recommended layout and placement for the BQ2057DGK involves placing the device close to the battery, using a star connection for the sense lines, and keeping the sense lines as short as possible to minimize noise and errors. A good layout practice is to use a four-layer board with a solid ground plane and a separate layer for the sense lines.
Calibration of the BQ2057DGK involves adjusting the gain and offset of the device to match the specific battery chemistry and characteristics. This can be done by measuring the battery voltage and current during charging and discharging, and then adjusting the gain and offset registers accordingly. TI provides a calibration guide and software tools to assist with this process.
The BQ2057DGK has an operating temperature range of -40°C to 85°C, but it can be extended to 125°C with proper thermal design and heat sinking. However, the accuracy and reliability of the device may be affected at higher temperatures, so it's essential to follow TI's guidelines for thermal management.
Yes, the BQ2057DGK can be used with multiple battery chemistries, including lithium-ion, lead-acid, and nickel-metal hydride. However, the device may require different calibration settings and compensation algorithms for each chemistry, and the user must ensure that the device is configured correctly for the specific battery type being used.
The BQ2057DGK has a sleep mode that reduces power consumption when the device is not actively monitoring the battery. The device can be woken up by an external interrupt or a timer event. To handle the sleep mode and wake-up mechanism, the user must ensure that the device is properly configured and that the wake-up sources are correctly enabled and prioritized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2057DGK Overview

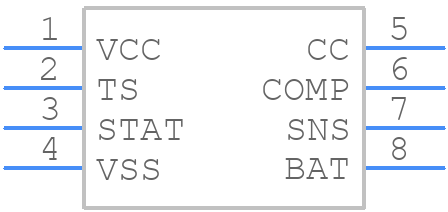

Use the download button to access the BQ2057DGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ205,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
