BQ2060A-E619DBQR - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ2060A-E619DBQR - Battery Fuel Gauge, Status Monitor, NiCd, NiMH, 2.7V to 3.7V, 2 Wire, Serial Interface, SSOP-28

Download BQ2060A-E619DBQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

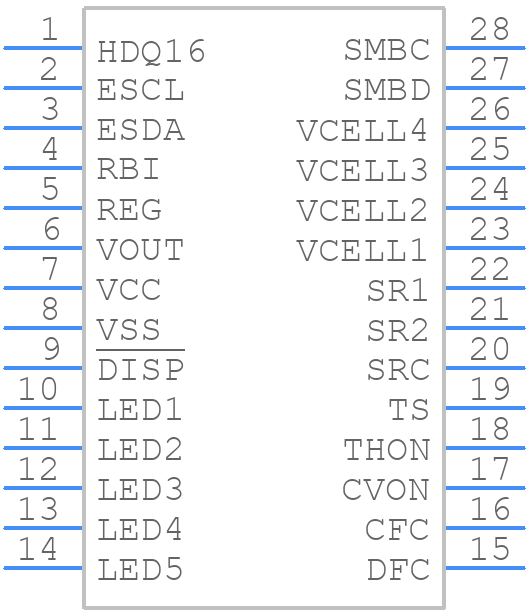

BQ2060A-E619DBQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2060A-E619DBQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ(R-PDSO-G28)
click to zoom
3D Models
BQ2060A-E619DBQR - Texas Instruments - 3D model - Small Outline Packages - DBQ(R-PDSO-G28)
click to zoom

BQ2060A-E619DBQR Details

  • Manufacturer Part Number:

    BQ2060A-E619DBQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Additional Feature:

    Cascade Function:N;CTL:N;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.235 mA

  • Supply Voltage-Max (Vsup):

    3.7 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

BQ2060A-E619DBQR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the battery voltage is recommended. The device should be placed close to the battery, and the PCB traces should be as short as possible to minimize resistance and inductance.
  • Calibration involves setting the device's internal registers to match the specific battery chemistry and capacity. This can be done using the TI-provided software tools, such as the Fuel Gauge Calibration Tool, and following the recommended calibration procedure outlined in the datasheet.
  • The device can handle up to 2A of continuous current, but it's recommended to limit the current to 1.5A for optimal performance and to prevent overheating.
  • The device has built-in overcharge, over-discharge, and over-current protection features. These can be enabled and configured using the device's registers. Additionally, external protection circuits can be implemented using external FETs and resistors.
  • The fuel gauge measurement accuracy is typically ±5% over the entire battery capacity range, but this can be improved to ±1% or better with proper calibration and compensation for temperature and aging effects.
