BQ2060SS-E207TR-EP - Texas Instruments

Description: Fuel Gauge Lead-Acid/Li-Ion/Li-Pol/NiCd/NiMH 3.3V 28-Pin SSOP T/R

Download BQ2060SS-E207TR-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

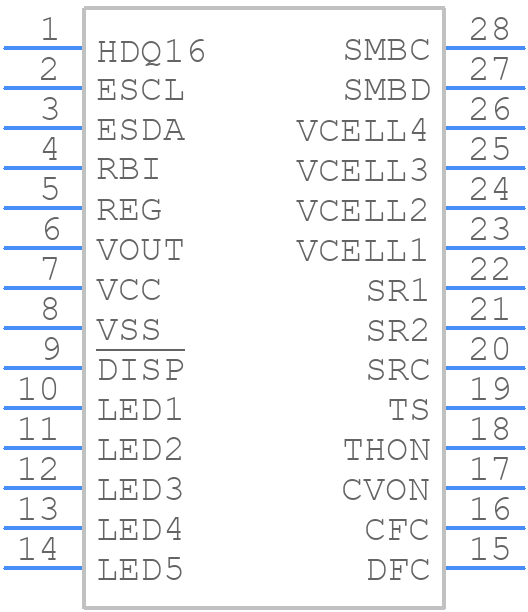

BQ2060SS-E207TR-EP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2060SS-E207TR-EP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ(R-PDSO-G28)
click to zoom
3D Models
BQ2060SS-E207TR-EP - Texas Instruments - 3D model - Small Outline Packages - DBQ(R-PDSO-G28)
click to zoom

BQ2060SS-E207TR-EP Details

  • Manufacturer Part Number:

    BQ2060SS-E207TR-EP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.7 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

BQ2060SS-E207TR-EP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Guidelines' (SLUA443) for optimal performance.
  • The BQ2060SS-E207TR-EP requires calibration to ensure accurate fuel gauging. Refer to the application note 'Battery Fuel Gauges: Calibration and Configuration' (SLUA442) for a step-by-step calibration procedure.
  • The BQ2060SS-E207TR-EP can handle up to 500 charge/discharge cycles before the fuel gauge accuracy may degrade. However, this number can vary depending on the specific battery chemistry and usage patterns.
  • The BQ2060SS-E207TR-EP is optimized for lithium-ion batteries, but it can be used with other battery chemistries with some modifications. Consult the application note 'Battery Fuel Gauges: Using the BQ2060 with Non-Li-Ion Batteries' (SLUA445) for guidance.
  • The BQ2060SS-E207TR-EP has a built-in overcharge protection feature. Refer to the datasheet and application note 'Battery Fuel Gauges: Overcharge Protection' (SLUA446) for implementation details.
