Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Guidelines' (SLUA443) for optimal performance.
Calibration of the BQ2060SS-E411 involves setting the device's internal registers to match the characteristics of the battery being used. This can be done using the TI-provided software tool, 'Battery Management Studio' (BMS), which provides a step-by-step calibration process.
The accuracy of the SOC measurement depends on various factors, including the quality of the calibration, the type of battery, and the operating conditions. Typically, the BQ2060SS-E411 can achieve an SOC accuracy of ±5% or better, but this may vary depending on the specific application.
Yes, the BQ2060SS-E411 is designed to support multiple battery chemistries, including Li-ion, Li-polymer, and NiMH. However, the device may require different calibration settings and compensation algorithms for each chemistry.
The BQ2060SS-E411 has built-in algorithms to compensate for battery aging and capacity loss. The device can learn the battery's capacity and adjust its SOC calculations accordingly, ensuring accurate state of charge measurements over the battery's lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2060SS-E411 Overview

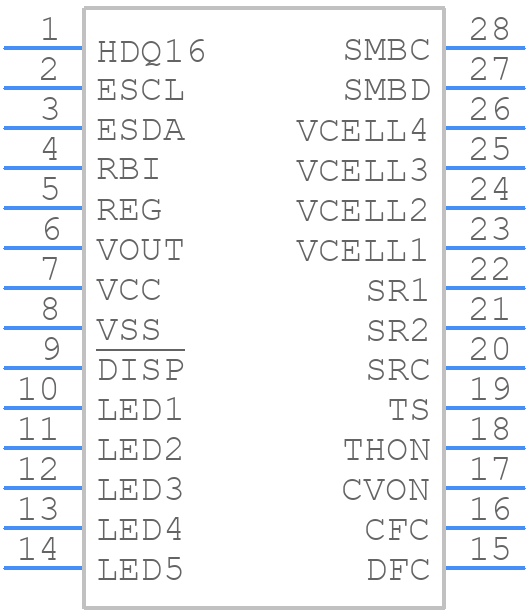

Use the download button to access the BQ2060SS-E411 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ206,
or try a keyword search, such as Power Management Circuits
