Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Guidelines' (SLUA443) for optimal performance.
Calibration involves adjusting the gauge's internal parameters to match the characteristics of the specific battery being used. TI provides a calibration guide (SLUA445) that outlines the steps to follow for calibration, including setting the capacity, voltage, and temperature compensation.
The accuracy of the SOC measurement depends on various factors, including the quality of the calibration, the battery's age and health, and the operating conditions. TI specifies an accuracy of ±5% for the BQ2060SS-E411TR, but this can be improved with proper calibration and compensation for temperature and aging effects.
While the BQ2060SS-E411TR is designed to support multiple battery chemistries, it's recommended to calibrate the gauge for each specific chemistry to ensure accurate SOC measurement. TI provides support for various chemistries, including Li-ion, Li-polymer, and NiMH, but additional calibration may be required for other chemistries.
The BQ2060SS-E411TR has a sleep mode to reduce power consumption. To wake up the device, a pulse on the WAKE pin is required. The datasheet provides details on the wake-up mechanism, and TI also recommends using a dedicated wake-up circuit to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2060SS-E411TR Overview

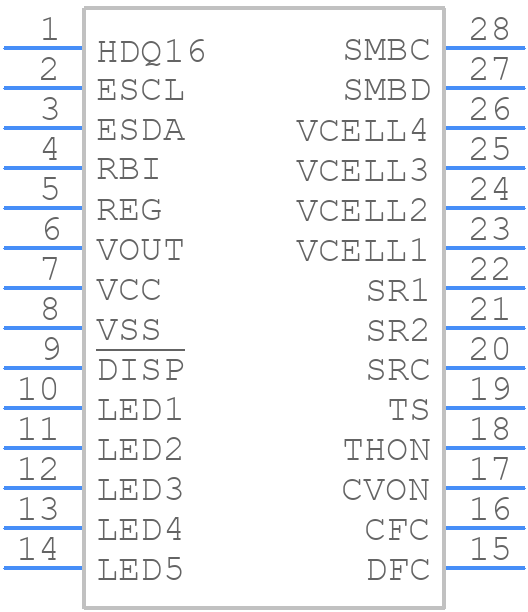

Use the download button to access the BQ2060SS-E411TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ206,
or try a keyword search, such as Power Management Circuits
