BQ2083DBTR-V1P3 - Texas Instruments

Description: Battery Management SBS-Cmplnt Gas Gauge for Use w/BQ29311

Download BQ2083DBTR-V1P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

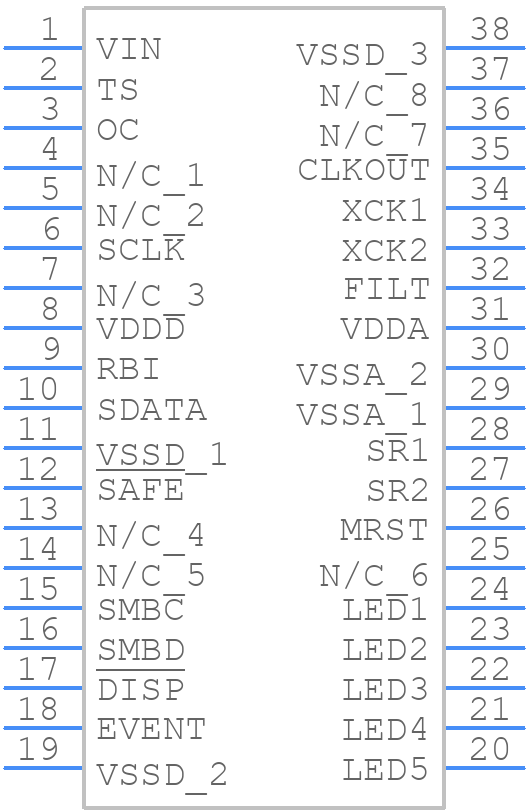

Symbol
BQ2083DBTR-V1P3 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2083DBTR-V1P3 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0038A
click to zoom
3D Models
BQ2083DBTR-V1P3 - Texas Instruments - 3D model - Small Outline Packages - DBT0038A
click to zoom

BQ2083DBTR-V1P3 Details

  • Manufacturer Part Number:

    BQ2083DBTR-V1P3

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    38

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ2083DBTR-V1P3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and wide, and use a common ground point for the device and the battery.
  • Accurate fuel gauging requires calibration of the device. Follow the calibration procedure outlined in the datasheet, and ensure that the device is calibrated for the specific battery chemistry and capacity used in the application.
  • The maximum operating temperature range for the BQ2083DBTR-V1P3 is -40°C to 85°C. However, the device can be operated at temperatures above 85°C for short periods of time, but this may affect its accuracy and reliability.
  • Yes, the BQ2083DBTR-V1P3 is designed to work with rechargeable batteries. However, the device must be configured to match the specific battery chemistry and capacity used in the application.
  • The BQ2083DBTR-V1P3 can be interfaced with a microcontroller using the I2C or SMBus interface. The device provides a 7-bit or 10-bit I2C address, and the microcontroller can read data from the device using the I2C or SMBus protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ2083DBTR-V1P3 Overview

Use the download button to access the BQ2083DBTR-V1P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ208, or try a keyword search, such as Power Management Circuits
