Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the battery connections short and wide, using a solid ground plane, and placing the IC close to the battery. Additionally, ensure that the PCB layout is symmetrical to minimize electromagnetic interference (EMI).
The BQ2084DBTR-V150 can handle a wide battery voltage range (2.5V to 4.5V). To ensure accurate fuel gauging, it's crucial to calibrate the device for the specific battery chemistry and voltage range used in your application. This can be done by following the calibration procedure outlined in the datasheet and application notes.
Temperature affects the battery's state of charge (SOC) and state of health (SOH). The BQ2084DBTR-V150 has a built-in temperature sensor, but it's essential to consider the temperature range of your application and compensate for temperature effects on the battery's performance. This can be done by using temperature compensation algorithms and calibrating the device for the specific temperature range.
The BQ2084DBTR-V150 has built-in protection features, such as overcharge and over-discharge protection. However, it's essential to implement additional safety features, such as overcurrent protection, short-circuit protection, and thermal protection, to ensure safe and reliable battery operation. This can be achieved by using external components, such as fuses and protection ICs, and designing a comprehensive battery management system.
The BQ2084DBTR-V150 uses a proprietary 1-wire communication protocol, which allows for communication with a host microcontroller or other devices. The protocol is described in the datasheet and application notes, and Texas Instruments provides example code and software development kits (SDKs) to facilitate communication with the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2084DBTR-V150 Overview

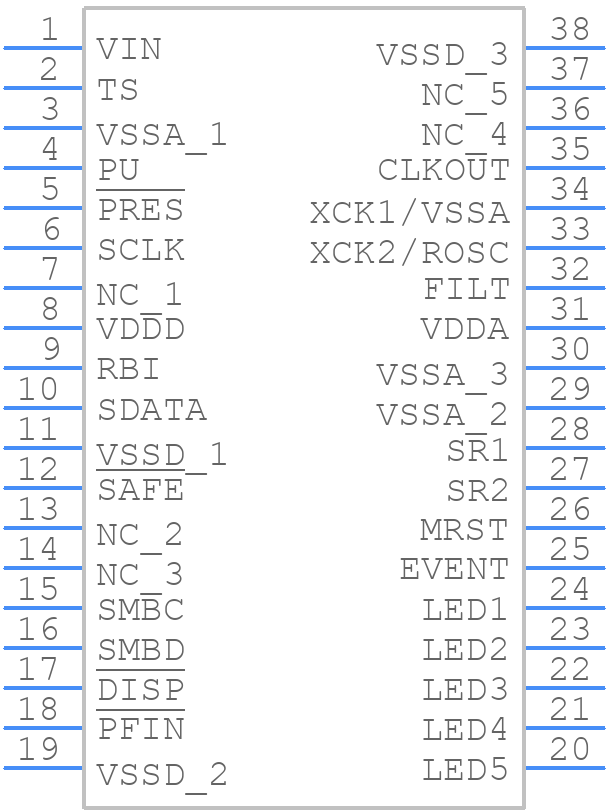

Use the download button to access the BQ2084DBTR-V150 schematic symbol, PCB footprint, and 3D model.
