Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the guidelines for thermal pad connection, decoupling capacitors, and signal routing to ensure optimal performance and minimize noise.
Calibration involves setting the device's internal registers to match the specific battery characteristics. TI provides a calibration guide and software tools, such as the Fuel Gauge Calibration Tool, to help with the process. It's crucial to follow the recommended calibration procedure to ensure accurate state-of-charge (SOC) readings.
The BQ20Z40PW is a high-accuracy, low-power fuel gauge IC designed for single-cell Li-ion batteries. It differs from other TI fuel gauge ICs in its specific feature set, such as its high accuracy, low quiescent current, and support for 1S-4S battery configurations. Engineers should choose the most suitable IC based on their specific application requirements.
The BQ20Z40PW has a sleep mode to reduce power consumption. Engineers should carefully design the wake-up mechanism, using the device's internal timer or an external interrupt, to ensure the fuel gauge wakes up and updates the SOC reading accurately. This is critical to maintain accurate battery monitoring and prevent unexpected shutdowns.
The BQ20Z40PW is rated for operation up to 85°C. However, high temperatures can affect the device's accuracy and reliability. Engineers should consider using thermal protection, heat sinks, or other cooling mechanisms to ensure the device operates within its specified temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ20Z40PW Overview

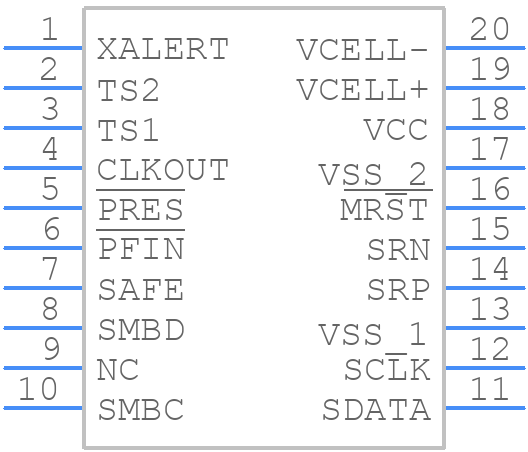

Use the download button to access the BQ20Z40PW schematic symbol, PCB footprint, and 3D model.
