BQ20Z45DBTR - Texas Instruments

Description: SBS 1.1 compliant Gas Gauge with Impedance Track Technology and Advanced Charging Algorithm

Download BQ20Z45DBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

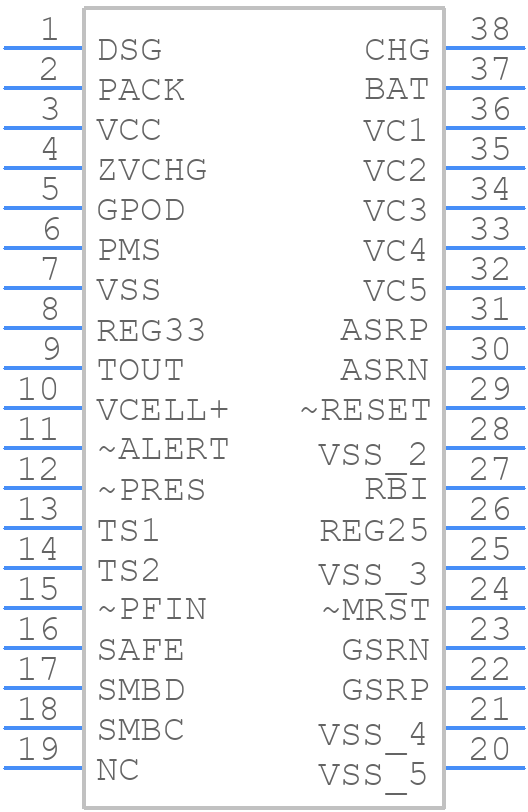

BQ20Z45DBTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ20Z45DBTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0038A
click to zoom
3D Models
BQ20Z45DBTR - Texas Instruments - 3D model - Small Outline Packages - DBT0038A
click to zoom

BQ20Z45DBTR Details

  • Manufacturer Part Number:

    BQ20Z45DBTR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-44

  • Pin Count:

    44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    11.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ20Z45DBTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the fuel gauge circuitry is recommended. The device should be placed close to the battery, and the PCB layout should minimize noise and interference.
  • Calibration involves programming the device with the battery's characteristics, such as capacity, chemistry, and discharge curve. TI provides a calibration guide and software tools to assist with this process.
  • Temperature affects the device's accuracy, especially at extreme temperatures. Compensate by using the device's built-in temperature sensor and applying temperature correction factors, or by using an external temperature sensor.
  • Implement a coulomb counting algorithm, which integrates the battery's current over time to track the SOC. The BQ20Z45DBTR provides a coulomb counter and supports various charging and discharging profiles.
