Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the battery connections short and wide, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane to reduce EMI.
Calibration is crucial for accurate state-of-charge (SOC) estimation. Follow the calibration procedure outlined in the datasheet, which involves charging and discharging the battery multiple times while monitoring the gauge's output. You can also use the TI-provided calibration software, such as the Fuel Gauge Calibration Tool, to simplify the process.
Temperature affects the fuel gauge's accuracy, especially at extreme temperatures. The BQ20Z655DBT has a built-in temperature sensor, but it's essential to consider temperature compensation during calibration. TI provides temperature correction factors in the datasheet, which can be used to improve accuracy across different temperature ranges.
The BQ20Z655DBT has a learning mechanism to adapt to battery aging and capacity loss. However, it's essential to implement a periodic calibration routine to update the gauge's internal model. This can be done by monitoring the battery's capacity and updating the gauge's parameters accordingly. TI provides guidelines for implementing a calibration routine in the datasheet.
The BQ20Z655DBT can handle up to 500 charge/discharge cycles before the fuel gauge's accuracy starts to degrade. However, this number can vary depending on the specific battery chemistry, operating conditions, and calibration quality. It's essential to consider the fuel gauge's limitations and plan for periodic recalibration or replacement.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ20Z655DBT Overview

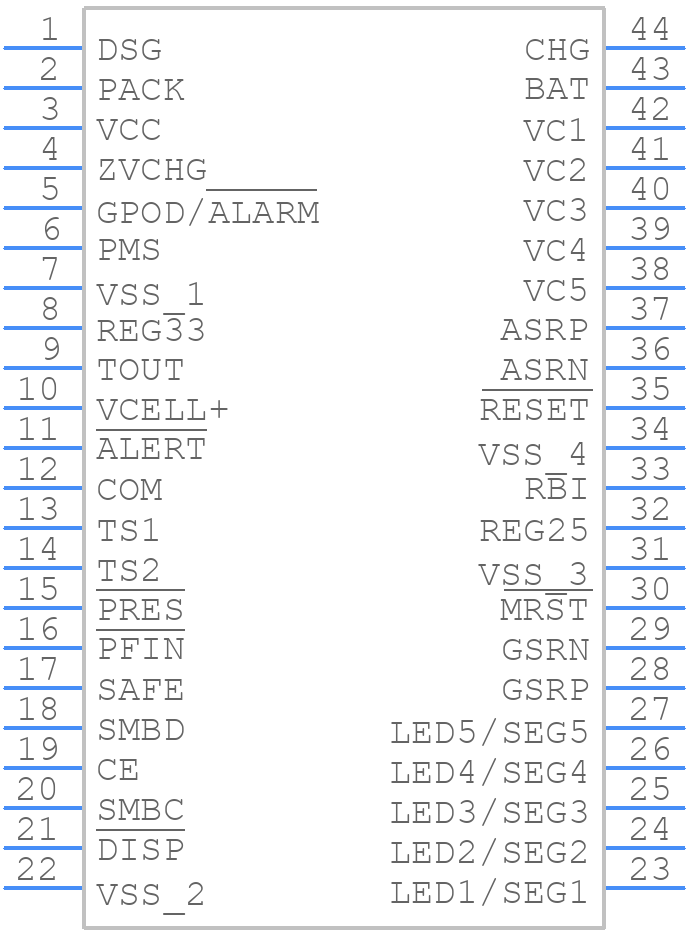

Use the download button to access the BQ20Z655DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ20Z,
or try a keyword search, such as Power Management Circuits
