Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Battery Management System (BMS) Layout Guidelines' application note (SLUA623) for optimal performance.
Calibration is required for accurate SOC measurement. TI provides a calibration procedure in the datasheet, which involves measuring the battery's open-circuit voltage and impedance at different SOC levels. Additionally, TI's Battery Management Studio software can be used to simplify the calibration process.
The BQ20Z80ADBT-V110 can support up to 16 series-connected cells. However, the maximum number of cells may vary depending on the specific application and battery chemistry. It's recommended to consult with TI's technical support or a battery expert for specific guidance.
Yes, the BQ20Z80ADBT-V110 is designed to be compatible with various battery chemistries, including lithium-ion, lead-acid, and nickel-metal hydride. However, the device's configuration and calibration may need to be adjusted depending on the specific battery chemistry and application requirements.
The BQ20Z80ADBT-V110 has built-in cell balancing capabilities, which can help to equalize the state of charge across series-connected cells. However, the device's cell balancing capabilities may have limitations depending on the specific application and battery configuration. It's recommended to consult with TI's technical support or a battery expert for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ20Z80ADBT-V110 Overview

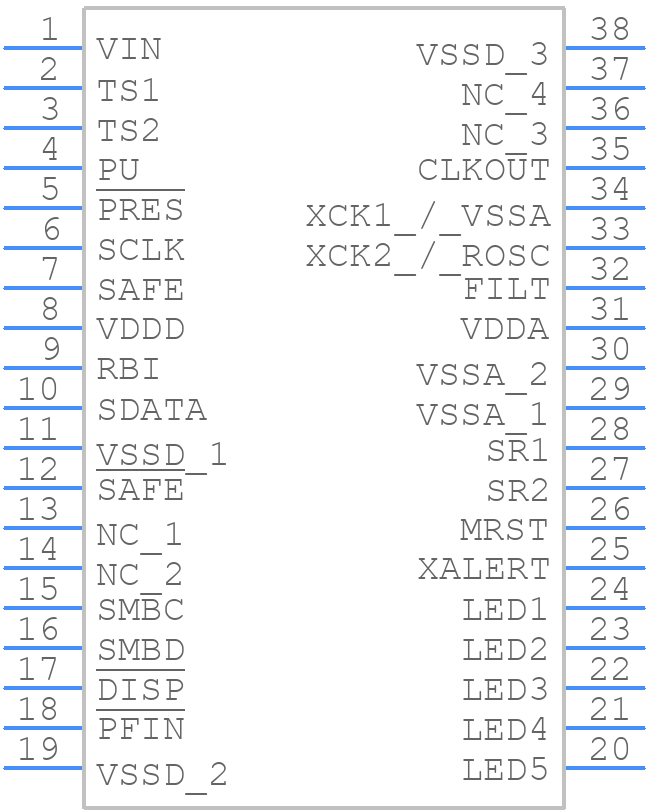

Use the download button to access the BQ20Z80ADBT-V110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ20Z,
or try a keyword search, such as Power Management Circuits
