BQ21080YBGR - Texas Instruments

Description: Battery Management 800-mA Li-ion and LiFePO4 IC programmable linear charger with regulated power path in WCSP package

Download BQ21080YBGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

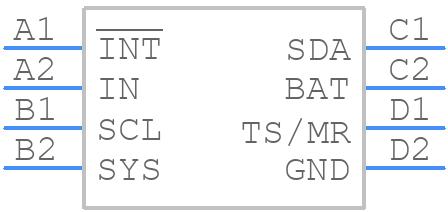

BQ21080YBGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ21080YBGR - Texas Instruments PCB footprint - BGA - BGA - YBG0008
click to zoom
3D Models
BQ21080YBGR - Texas Instruments - 3D model - BGA - YBG0008
click to zoom

BQ21080YBGR Details

  • Manufacturer Part Number:

    BQ21080YBGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Thermal Shutdown:150C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-XBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.5495 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,2X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

BQ21080YBGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'Battery Charger Layout Guidelines' (SLUA443) for optimal performance and thermal management.
  • The BQ21080YBGR has an internal OVP circuit, but it's recommended to add an external OVP circuit using a voltage supervisor IC (such as the TLV7031) to provide additional protection against overvoltage conditions.
  • The BQ21080YBGR is designed for Li-Ion/Li-Polymer batteries, but it can be used with other battery chemistries with some modifications. However, it's recommended to consult with TI's application engineers to ensure the charger is properly configured and optimized for the specific battery chemistry.
  • The BQ21080YBGR has a thermal shutdown feature, but it's still important to ensure good thermal management through proper PCB design, component placement, and heat sinking. TI recommends following the thermal management guidelines in the datasheet and application notes.
