BQ2201PN - Texas Instruments

Description: Memory Controllers SRAM Nonvolatile Controller IC

Download BQ2201PN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

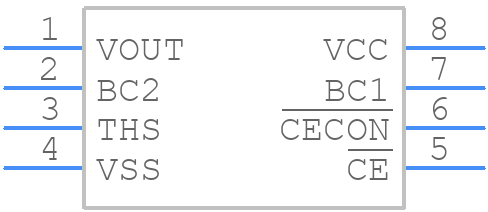

BQ2201PN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2201PN - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP Narrow (PN)
click to zoom
3D Models
BQ2201PN - Texas Instruments - 3D model - Dual-In-Line Packages - 8-Pin DIP Narrow (PN)
click to zoom

BQ2201PN Details

  • Manufacturer Part Number:

    BQ2201PN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC
