A good PCB layout for the BQ2201SN-NTR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
To ensure proper power-up and initialization, apply a clean and stable input voltage, ensure the EN pin is high, and wait for the PG pin to go high, indicating the device is ready for operation.
The BQ2201SN-NTR has a thermal shutdown feature that activates at 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and avoid high ambient temperatures.
To troubleshoot issues, check the input voltage, output voltage, and PG pin status. Verify the PCB layout and component values, and consult the datasheet and application notes for guidance.
Yes, to minimize EMI/EMC issues, use a shielded enclosure, keep the device away from noise sources, and ensure proper PCB layout and decoupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2201SN-NTR Overview

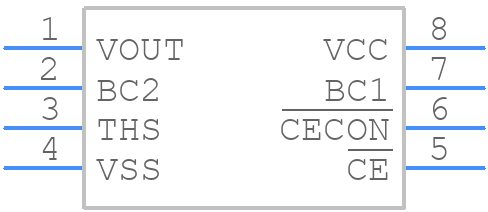

Use the download button to access the BQ2201SN-NTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ220,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
