Texas Instruments recommends a compact layout with the BQ2201SNTR placed close to the battery, and the input and output capacitors placed as close as possible to the device. A 4-layer PCB with a solid ground plane is also recommended to minimize noise and EMI.
To ensure accurate battery monitoring, it's essential to calibrate the device using the CAL pin and an external resistor. Additionally, the battery voltage and temperature sensors should be placed close to the battery, and the system should be designed to minimize noise and interference.
The BQ2201SNTR can operate over a temperature range of -40°C to 85°C, but the accuracy of the battery monitoring functions may be affected at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related considerations.
Yes, the BQ2201SNTR can be used with various battery chemistries, including Li-ion, Li-polymer, and NiMH. However, the device may require calibration and configuration for each specific battery chemistry, and the system designer should consult the datasheet and application notes for guidance.
The BQ2201SNTR provides an I2C interface for communication with microcontrollers or other digital systems. The device can be connected to a microcontroller using a standard I2C bus, and the system designer should consult the datasheet and application notes for specific interface and protocol requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2201SNTR Overview

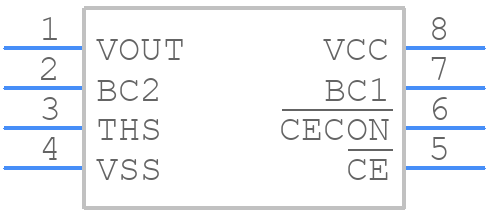

Use the download button to access the BQ2201SNTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ220,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
