Texas Instruments recommends a compact layout with the BQ2204ASN placed close to the battery, and the input and output capacitors placed as close as possible to the device. A 4-layer PCB with a solid ground plane is also recommended to minimize noise and EMI.
To ensure accurate battery monitoring, it's essential to use a high-accuracy sense resistor (e.g., 1% or better) and to calibrate the device during manufacturing. Additionally, the BQ2204ASN should be operated within its specified temperature range, and the battery voltage and current should be within the device's specified operating range.
Yes, the BQ2204ASN can be used with multiple battery chemistries, including Li-ion, Li-polymer, NiMH, and Lead-Acid. However, the device's settings and calibration may need to be adjusted depending on the specific battery chemistry and characteristics.
The BQ2204ASN's sleep mode can be controlled through the EN pin. To wake up the device, the EN pin should be driven high for at least 100 ns. The device will then enter its normal operating mode. It's essential to ensure that the wake-up signal is clean and glitch-free to avoid false wake-ups.
The BQ2204ASN's accuracy and tolerance for battery voltage and current measurements are typically ±1% for voltage and ±2% for current over the entire operating temperature range. However, these values can be affected by various factors, including the sense resistor's accuracy, PCB layout, and environmental conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2204ASN Overview

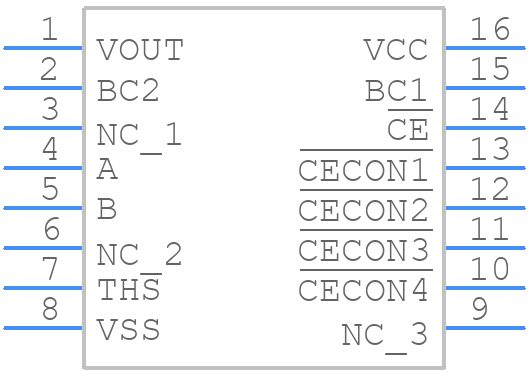

Use the download button to access the BQ2204ASN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ220,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
