Texas Instruments recommends a compact layout with the BQ2204ASNTR placed close to the battery, and the input capacitors (CIN) placed as close as possible to the device. The output capacitor (COUT) should be placed near the load. A 4-layer PCB with a solid ground plane is recommended to minimize noise and EMI.
To minimize IQ, ensure that the EN pin is driven from a low-impedance source, and the input voltage (VIN) is as close to the output voltage (VOUT) as possible. Also, use a low-value resistor (RFB) in the feedback network, and consider using a low-IQ mode (e.g., pulse-frequency modulation) if the application allows it.
Although the datasheet specifies a maximum input voltage of 6.5V, the device can handle up to 7V for short durations (e.g., during power-up or voltage transients). However, sustained operation above 6.5V may reduce the device's reliability and lifespan.
To ensure stability, use a minimum output capacitance (COUT) of 10uF, and a maximum equivalent series resistance (ESR) of 1 ohm. Also, ensure that the input capacitance (CIN) is sufficient to filter out high-frequency noise. Additionally, consider adding a small ceramic capacitor (e.g., 100nF) in parallel with COUT to improve stability.
The BQ2204ASNTR is rated for operation up to 85°C (junction temperature). However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 85°C, consider using a heat sink or a thermally enhanced package, and ensure that the device is properly derated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2204ASNTR Overview

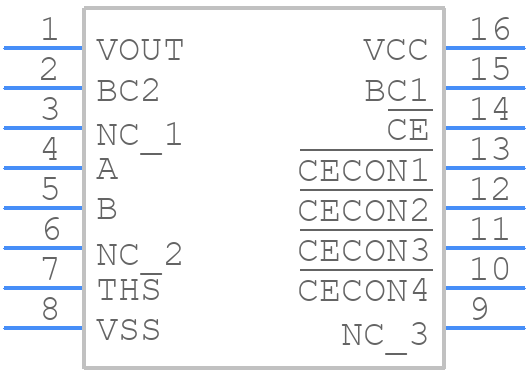

Use the download button to access the BQ2204ASNTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ220,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
