Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure accurate battery monitoring, it's crucial to calibrate the BQ2205LYPWG4 using the CAL pin. Additionally, use a high-precision voltage reference, and ensure the battery voltage sense lines are properly connected and shielded to minimize noise and interference.
The BQ2205LYPWG4 can monitor battery capacities up to 16 Ah. However, the device's accuracy may degrade for larger capacities. For capacities above 16 Ah, consider using a more advanced battery monitoring IC or a custom solution.
Yes, the BQ2205LYPWG4 can be used for lithium-ion batteries with different chemistries, such as LiCoO2, LiFePO4, or LiNiMnCoO2. However, the device's accuracy may vary depending on the specific chemistry and battery characteristics.
The BQ2205LYPWG4 has a built-in temperature sensor, but it's recommended to use an external thermistor or thermocouple for more accurate temperature monitoring. Ensure proper thermal coupling between the temperature sensor and the battery to obtain reliable readings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2205LYPWG4 Overview

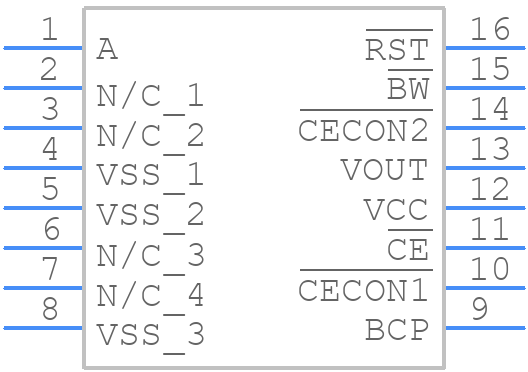

Use the download button to access the BQ2205LYPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ220,
or try a keyword search, such as Power Management Circuits
