BQ24002PWP - Texas Instruments

Description: Linear 1-cell Li-Ion Battery Charger w/Integrated FET, Two LED

Download BQ24002PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

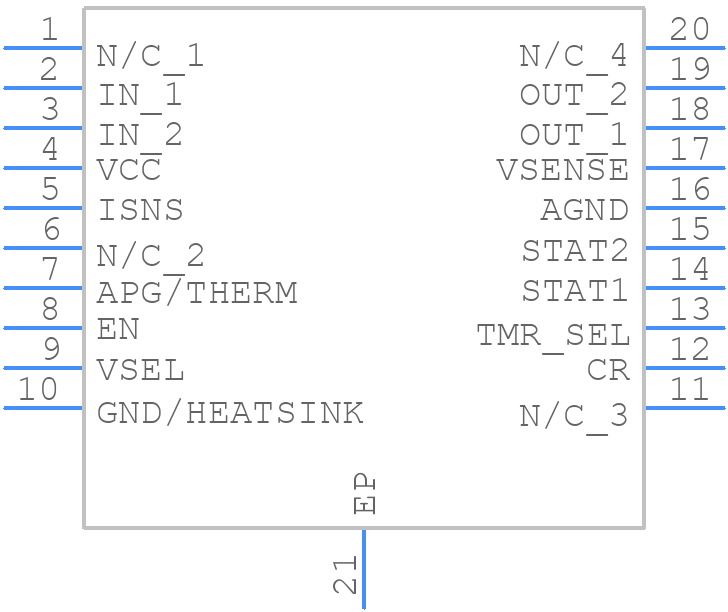

Symbol
BQ24002PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24002PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - BQ24002PWP
click to zoom
3D Models
BQ24002PWP - Texas Instruments - 3D model - Small Outline Packages - BQ24002PWP
click to zoom

BQ24002PWP Details

  • Manufacturer Part Number:

    BQ24002PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OPTIONAL TEMPERATURE OR INPUT-POWER MONITORING BEFORE AND DURING CHARGE

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ24002PWP Frequently Asked Questions (FAQs)

  • A good layout practice is to keep the input and output capacitors close to the IC, and to use a solid ground plane to reduce noise and EMI. Additionally, it is recommended to keep the high-current paths (e.g. from the input capacitor to the IC) short and wide to reduce resistance and inductance.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF, and the output capacitor should be a low-ESR ceramic capacitor with a value of at least 22uF. The capacitor values and types should be chosen based on the specific application requirements and the output voltage ripple and noise requirements.
  • The BQ24002PWP can handle input voltages up to 18V, but it is recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The charge current and voltage of the BQ24002PWP can be programmed using external resistors connected to the ISET and VSET pins, respectively. The values of these resistors determine the charge current and voltage, and can be calculated using the equations provided in the datasheet.
  • The EN pin is an active-high enable input that allows the user to turn the charger on and off. When the EN pin is high, the charger is enabled, and when it is low, the charger is disabled. This pin can be used to control the charger using a microcontroller or other external logic.
