BQ24008PWP - Texas Instruments

Description: Linear 1-cell Li-Ion Battery Charger W/Integrated FET, Bi-Color LED

Download BQ24008PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

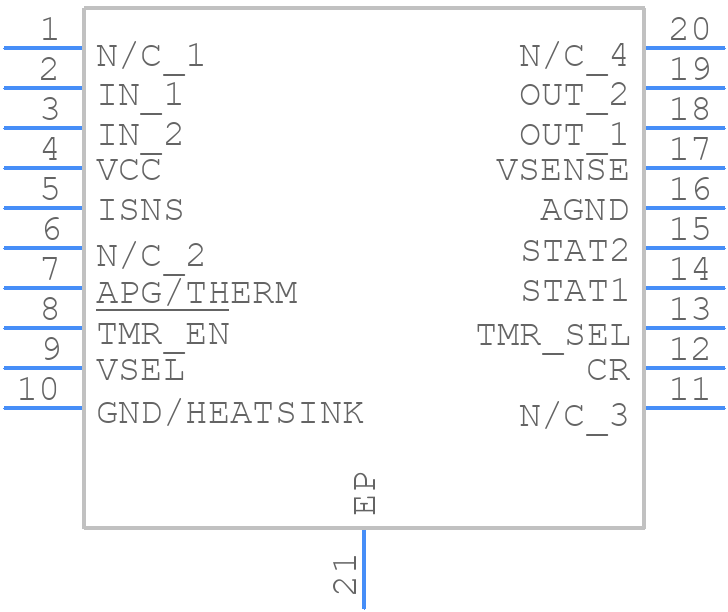

Symbol
BQ24008PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24008PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom
3D Models
BQ24008PWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom

BQ24008PWP Details

  • Manufacturer Part Number:

    BQ24008PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OPTIONAL TEMPERATURE OR INPUT-POWER MONITORING BEFORE AND DURING CHARGE

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ24008PWP Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the IC placed close to the battery and the input capacitors. The layout should also minimize the loop area of the power paths to reduce EMI. A recommended layout is shown in the TI application note SLUA433.
  • The selection of external components such as the input capacitor, output capacitor, and inductor depends on the specific application requirements. TI provides a component selection guide in the datasheet and application notes. Additionally, the TI Webench tool can be used to select the optimal components for a specific design.
  • The BQ24008PWP can handle input voltages up to 18V, but it is recommended to limit the input voltage to 12V to ensure reliable operation and to prevent damage to the IC.
  • The charge current and voltage can be configured using external resistors connected to the ISET and VREG pins. The datasheet provides a detailed explanation of how to calculate the required resistor values for a specific charge current and voltage.
  • The EN pin is an enable input that allows the user to turn the charger on or off. When the EN pin is low, the charger is disabled and the output is disconnected from the input. This pin can be used to implement a power-saving mode or to disable the charger during shipping or storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24008PWP Overview

Use the download button to access the BQ24008PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
