BQ24013DRCR - Texas Instruments

Description: bqTINY Linear 1-cell Li-Ion Charger w/ 1-A FET, Charge Enable & Term Enable in QFN-10

Download BQ24013DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

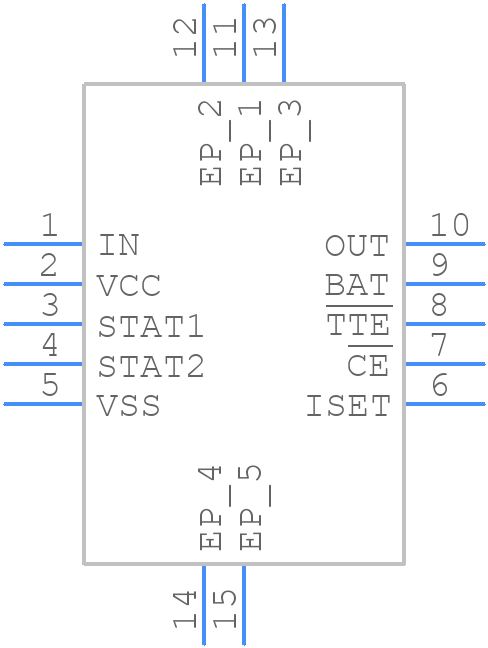

BQ24013DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24013DRCR - Texas Instruments PCB footprint - Other - Other - BQ24013DRCR-1
click to zoom
3D Models
BQ24013DRCR - Texas Instruments - 3D model - Other - BQ24013DRCR-1
click to zoom

BQ24013DRCR Details

  • Manufacturer Part Number:

    BQ24013DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    16.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24013DRCR Frequently Asked Questions (FAQs)

  • The BQ24013DRCR can handle input voltages up to 18V, but it's recommended to keep it below 15V for optimal performance and to prevent overheating.
  • The BQ24013DRCR has a programmable charge current and voltage limit. You can use external resistors to set the charge current and voltage according to your battery's requirements. Refer to the datasheet for the resistor calculation formulas.
  • The EN (enable) pin is used to enable or disable the charger. When EN is high, the charger is enabled, and when EN is low, the charger is disabled. You can use this pin to control the charger's operation using a microcontroller or a switch.
  • The BQ24013DRCR has several status pins (CHG, FAULT, and TS) that indicate the charging status and fault conditions. You can use these pins to monitor the charging process and detect faults such as over-temperature, over-voltage, and under-voltage.
