BQ24032ARHLR - Texas Instruments

Description: Dual Input Li-Ion Charger with Dynamic Power Path, Output regulated to 4.4V, Vbat 4.2V

Download BQ24032ARHLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

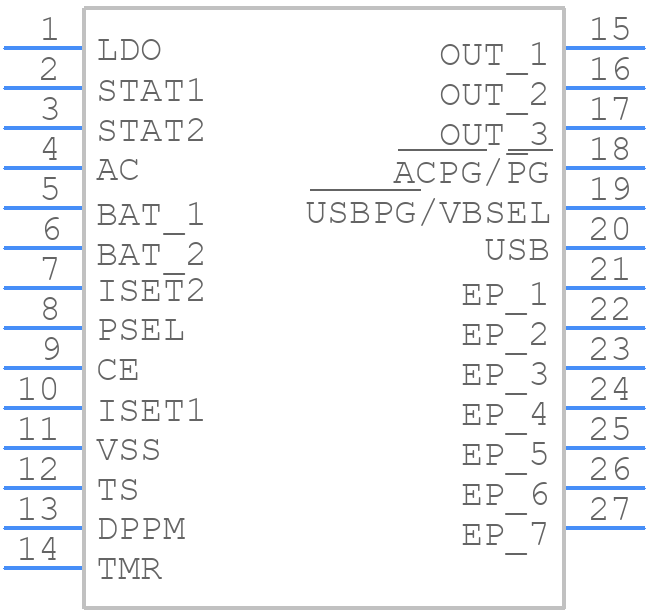

BQ24032ARHLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24032ARHLR - Texas Instruments PCB footprint - Other - Other - RHL0020A_2
click to zoom
3D Models
BQ24032ARHLR - Texas Instruments - 3D model - Other - RHL0020A_2
click to zoom

BQ24032ARHLR Details

  • Manufacturer Part Number:

    BQ24032ARHLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20/24,.14X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24032ARHLR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24032ARHLR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of external components such as capacitors, resistors, and inductors depends on the specific application requirements. TI provides guidelines for component selection in the datasheet and application notes. Additionally, online tools such as TI's Power Stage Designer can help with component selection.
  • The BQ24032ARHLR is rated for operation from -40°C to 85°C. However, the device may be able to operate outside this range with reduced performance and reliability. Consult the datasheet and application notes for more information.
  • The BQ24032ARHLR has a built-in overcurrent protection feature that can be enabled by connecting a sense resistor to the OCP pin. The device will limit the output current to prevent damage in the event of an overcurrent condition. Consult the datasheet for more information on implementing overcurrent protection.
  • Yes, the BQ24032ARHLR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24032ARHLR Overview

Use the download button to access the BQ24032ARHLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240, or try a keyword search, such as Power Management Circuits
