BQ24040DSQT - Texas Instruments

Description: 1A 1-Cell Li-Ion Battery Charger WSON10 Texas Instruments BQ24040DSQT, Battery Charge Controller, 1000mA, 10-Pin SON

Download BQ24040DSQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

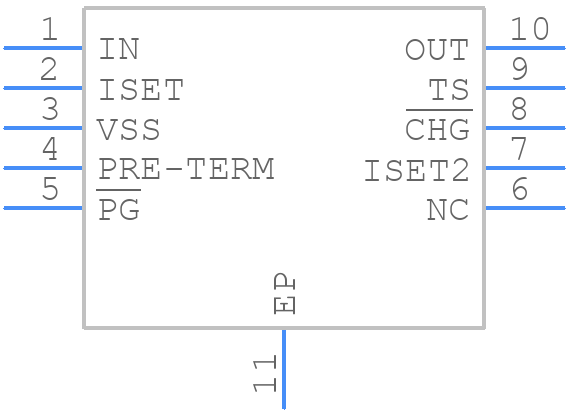

BQ24040DSQT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24040DSQT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSQ (S-PWSON-N10)-
click to zoom
3D Models
BQ24040DSQT - Texas Instruments - 3D model - Small Outline No-lead - DSQ (S-PWSON-N10)-
click to zoom

BQ24040DSQT Details

  • Manufacturer Part Number:

    BQ24040DSQT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ24040DSQT Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24040DSQT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ24040DSQT depends on the specific application requirements. Generally, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 4.7uF for the input capacitor and 10uF for the output capacitor.
  • The BQ24040DSQT can handle input voltages up to 18V, but it is recommended to operate within the specified input voltage range of 4.5V to 12V for optimal performance and reliability.
  • The BQ24040DSQT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values in the voltage divider network.
  • The BQ24040DSQT is rated for operation up to 85°C, but it can be derated for higher temperatures. However, it is recommended to consult the datasheet and application notes for specific guidance on operating the device in high-temperature environments.
