BQ24052DSQT - Texas Instruments

Description: 1A, Single-Input, Single Cell Li-Ion Battery Charger with Automatic AC/USB Detection, Rntc=100k

Download BQ24052DSQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

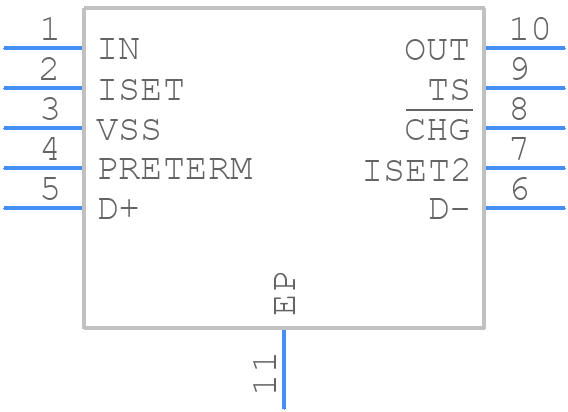

BQ24052DSQT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24052DSQT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSQ0010A
click to zoom
3D Models
BQ24052DSQT - Texas Instruments - 3D model - Small Outline No-lead - DSQ0010A
click to zoom

BQ24052DSQT Details

  • Manufacturer Part Number:

    BQ24052DSQT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.45 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    6.45 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ24052DSQT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the BQ24052DSQT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. Refer to the TI application note SLUA623 for more details.
  • The charging current can be optimized by selecting the appropriate resistor values for the ISET pin. The ISET pin sets the charging current, and the recommended values are provided in the datasheet. Additionally, the charging current can be adjusted based on the battery's capacity and chemistry.
  • The BQ24052DSQT has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To minimize thermal issues, ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pad. Refer to the datasheet for thermal resistance values.
  • The BQ24052DSQT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold is set by the voltage divider ratio, and the recommended values are provided in the datasheet.
  • The BQ24052DSQT is designed for Li-Ion/Li-Polymer batteries, but it can be used with other chemistries with some modifications. However, the charging algorithm and voltage thresholds may need to be adjusted. Consult the datasheet and TI application notes for more information.
