BQ24060DRCT - Texas Instruments

Description: Battery Management Single Cell Li-Ion Charger

Download BQ24060DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

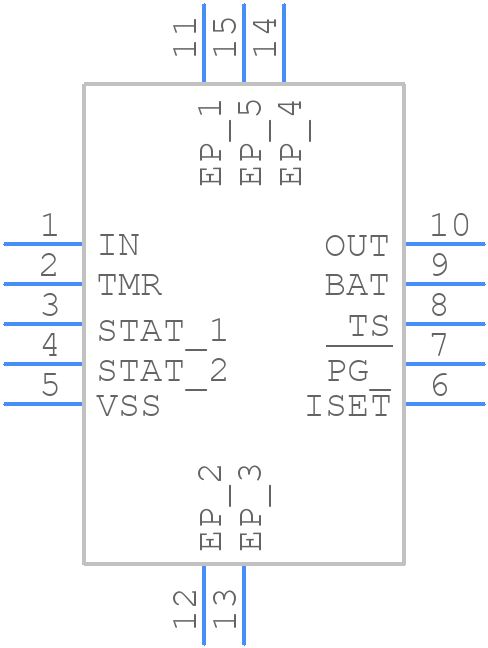

BQ24060DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24060DRCT - Texas Instruments PCB footprint - Other - Other - BQ24060DRCT-1
click to zoom
3D Models
BQ24060DRCT - Texas Instruments - 3D model - Other - BQ24060DRCT-1
click to zoom

BQ24060DRCT Details

  • Manufacturer Part Number:

    BQ24060DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    16.5 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24060DRCT Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24060DRCT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ24060DRCT depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 4.7uF for the input and 10uF for the output. The capacitor selection guide in the datasheet provides more information.
  • The BQ24060DRCT can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and to prevent overheating.
  • The BQ24060DRCT has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. TI provides more information on implementing overcurrent protection in the datasheet and application notes.
  • The BQ24060DRCT is rated for operation up to 85°C, but it can be used in high-temperature environments with some derating. TI provides thermal derating information in the datasheet. It's recommended to use a heat sink or thermal pad to improve heat dissipation in high-temperature applications.
