SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
6 mA
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
4.35 V
Supply Voltage-Nom (Vsup):
6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+6.5V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
BQ24061DRCR Frequently Asked Questions (FAQs)
A good PCB layout for the BQ24061DRCR involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the input and output to minimize noise coupling.
The selection of external components such as the input and output capacitors, inductor, and resistors depends on the specific application requirements. TI provides a component selection guide in the datasheet, and engineers can also use TI's WEBENCH online design tool to simplify the component selection process.
The BQ24061DRCR has a thermal shutdown feature that protects the device from overheating. To ensure reliable operation over temperature, engineers should ensure good thermal design practices such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources.
To troubleshoot issues with the BQ24061DRCR, engineers should first consult the datasheet and application notes. They can also use TI's debugging tools such as the BQ24061EVM-001 evaluation module and the TI Power Management Studio software to identify and resolve issues.
Yes, the BQ24061DRCR is suitable for high-reliability applications. It is qualified to automotive (AEC-Q100) and industrial standards, and is also compliant with relevant certifications such as ISO/TS 16949 and IATF 16949.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24061DRCR Overview

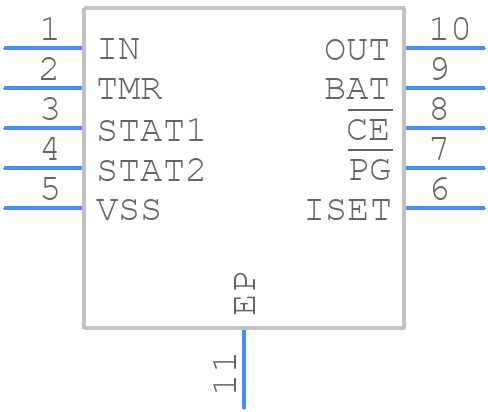

Use the download button to access the BQ24061DRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
