Part Image

BQ24070RHLR - Texas Instruments

Description: Battery Management Single Input Charger

Download BQ24070RHLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

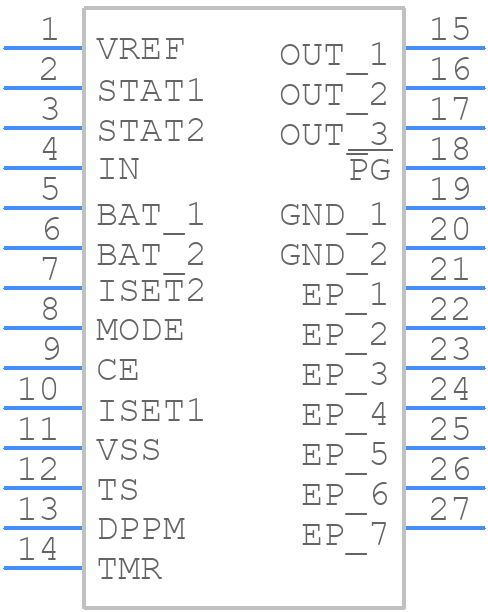

BQ24070RHLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24070RHLR - Texas Instruments PCB footprint - Other - Other - RHL0020A_2
click to zoom
3D Models
BQ24070RHLR - Texas Instruments - 3D model - Other - RHL0020A_2
click to zoom

BQ24070RHLR Details

  • Manufacturer Part Number:

    BQ24070RHLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20/24,.14X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24070RHLR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24070RHLR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of external components such as capacitors, resistors, and inductors depends on the specific application requirements. TI provides guidelines for component selection in the datasheet and application notes. Additionally, TI's Webench tool can be used to simulate and optimize the design.
  • The BQ24070RHLR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 16V for optimal performance and reliability.
  • The BQ24070RHLR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the device's internal resistance.
  • The BQ24070RHLR is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. TI provides thermal derating guidelines in the datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24070RHLR Overview

Use the download button to access the BQ24070RHLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240, or try a keyword search, such as Power Management Circuits
