Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24072RGTTG4 has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ2407x Charging Profile Optimization Tool, which allows designers to customize the charging profile for their specific battery chemistry and application requirements.
While the datasheet specifies an operating temperature range of -40°C to 85°C, the maximum ambient temperature range for the BQ24072RGTTG4 depends on the specific application and thermal design. Texas Instruments recommends consulting the thermal design guidelines in the application note SLUA444 to ensure the device operates within a safe temperature range.
Yes, the BQ24072RGTTG4 can be used with battery packs that have multiple cells in series and/or parallel. However, the device's charging and monitoring capabilities may need to be customized using external components and programming to accommodate the specific battery pack configuration.
Texas Instruments provides guidance on safety standards compliance in the application note SLUA444, which includes recommendations for design, testing, and certification to ensure compliance with safety standards such as IEC 62133 and UL 2054.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24072RGTTG4 Overview

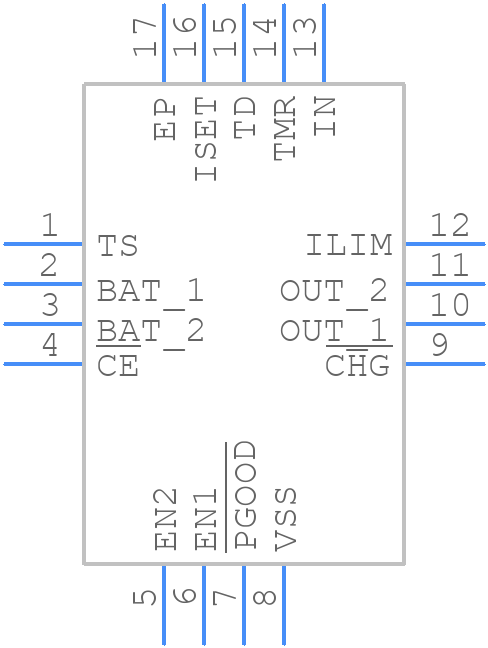

Use the download button to access the BQ24072RGTTG4 schematic symbol, PCB footprint, and 3D model.
